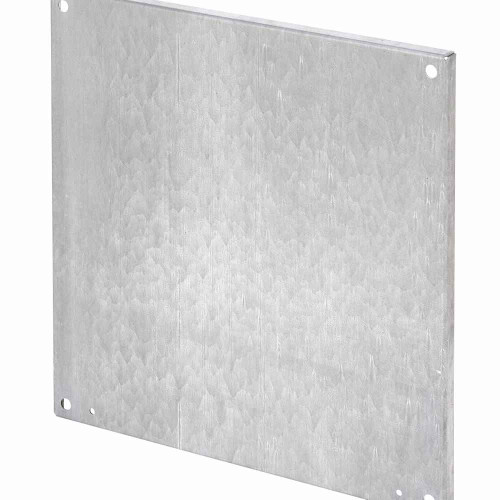

Eaton B-Line series panels and panel accessories, NEMA 3R, White powder coated, Stainless steel, Panels and panel accessories, JIC and small panels, 48" X 36" panel
Manufacturer Resources
Product Specs
- Certifications:
- CSA C22.2.
- Degree Of Protection:
- NEMA 3R
- Finish Color:
- White powder coated
- Product Category:
- Panels & panel accessories
- Product Height:
- 44.87 in
- Product Length Depth:
- 32.875 in
- Product Weight:
- 43.905 lb
- Product Width:
- 32.87 in
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- JIC & small panels
- Product Details:
- JIC & small panels
- Product Material:
- Stainless steel
B-LINE N4836P – Frequently Asked Questions
1) What size enclosure does the B-Line N4836P back panel fit?
The N4836P is the back panel sized for a 48 x 36 inch enclosure. The panel itself measures 44.87 by 32.87 inches, with a 32.875 inch length/depth figure on record, so it sits inside the box on the mounting studs rather than matching the enclosure's outside dimensions. If your enclosure is a different nominal size, you need the panel cut for that size, not this one.
2) Is the N4836P panel stainless steel or painted steel?
Both, in effect. The N4836P is a stainless steel panel with a white powder coated finish. The white coat is standard on back panels because it reflects light inside the enclosure and makes component layout and wire marking easier to read; the stainless substrate is what you want in washdown, coastal, or chemical exposure where a plain carbon steel panel would rust at any drilled hole.
3) Does the NEMA 3R rating on this B-Line panel mean the panel itself is weatherproof?
NEMA 3R is the enclosure family rating the N4836P is built for, meaning outdoor service with protection against rain, sleet and falling dirt. A back panel does not seal anything on its own, it is the mounting plate inside the box. What the rating tells you is that this panel is intended for 3R outdoor enclosures, and the stainless steel construction suits that exposure.
4) Is the Eaton B-Line N4836P panel certified for use in Canada?
It carries CSA C22.2 certification, which is the Canadian standard series for electrical enclosures and components. That matters if you are building a control panel for a Canadian jobsite or an inspection that requires CSA-marked components.
5) What exact part number should I order for a 48 by 36 white B-Line back panel?
Order Eaton B-Line N4836P. That is the manufacturer part number for the 48 x 36 inch JIC and small panel back plate in white powder coated stainless steel.
6) Can I drill and tap this panel for my own component layout?
Yes, back panels like the N4836P ship blank for exactly that reason. Drill and tap it for your DIN rail, wire duct and device feet to suit the layout. One note on the stainless substrate: any hole you cut breaks the white powder coat, but the stainless underneath will not rust the way a painted carbon steel panel does in a 3R outdoor box.
