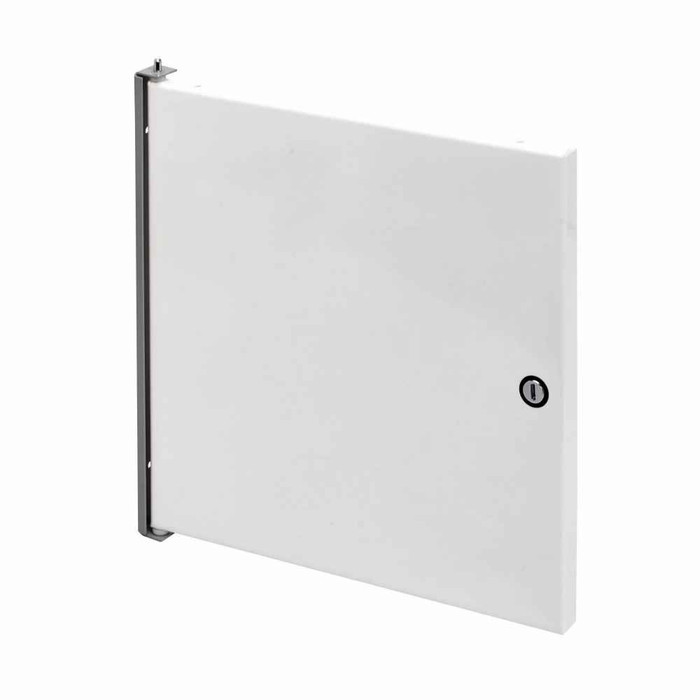

Eaton B-Line series premier series accessories, NEMA 4, White polyester powder coated, Swing-out panels help with component mounting, Swing-out panels, Premier series accessories, Swing-out panel, 14 gauge
Manufacturer Resources
Product Specs
- Application:
- Swing-out panels help with component mounting
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 4
- Finish Color:
- White powder coated
- Product Category:
- Premier series accessories
- Product Height:
- 21.78 in
- Product Length Depth:
- 21.78 in
- Product Weight:
- 12.255 lb
- Product Width:
- 21.84 in
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- Swing-out panels
- Product Details:
- Swing-out panels
- Product Style:
- Galvanized panel
B-LINE 2424SP – Frequently Asked Questions
1) Can I use a swing-out panel in a NEMA 4 washdown enclosure without losing the rating?
Yes. The 2424SP swing-out panel is rated for NEMA 4 Premier series enclosures and is UL Listed, so it mounts inside the box without breaking the watertight envelope. It is an internal panel only, nothing passes through the enclosure wall, so the NEMA 4 seal stays with the door gasket and latches.
2) Should I use a swing-out panel or a fixed back panel for mounting components?
A fixed back panel bolts flat to the rear of the enclosure and gives you one mounting plane. A swing-out panel like the 2424SP hinges forward, so you mount components on it and still get access to wiring and terminals behind it. Use the swing-out when you need two layers of mounting depth or need to service what is behind the plate; use a flat back panel when the enclosure is shallow and a single plane is enough.
3) Does the 2424SP come drilled for components or blank?
It ships as a blank panel. You lay out and drill or tap it for whatever you are mounting, which is the point of a swing-out, it gives you a clean second mounting plane inside a NEMA 4 Premier enclosure. Mounting hardware for your components is not part of the panel.
4) What is the exact part number to order for a 24 x 24 B-Line swing-out panel?
Eaton B-Line part number 2424SP, the white powder coated 14 gauge swing-out panel for Premier series NEMA 4 enclosures. That single MPN covers it, there are no finish or size options to specify.
5) Is the 2424SP panel painted or bare steel?
White polyester powder coat over galvanized steel. The white face makes it easier to read legends and see small wire markings inside the box. If you need a conductive mounting surface for bonding a device, you will have to scrape the coating or use a paint-piercing washer at that point.
