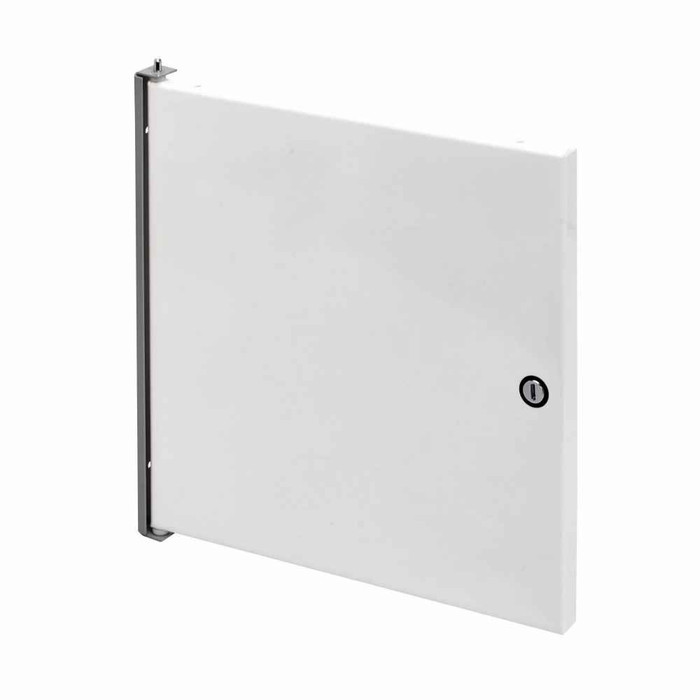

Eaton B-Line series premier series accessories, NEMA 4, White polyester powder coated, Swing-out panels help with components mounting, Swing-out panel, 14 gauge
Manufacturer Resources
Product Specs
- Application:
- Swing-out panels help with component mounting
- Certifications:
- UL Listed
- Degree Of Protection:
- NEMA 4
- Finish Color:
- White powder coated
- Product Category:
- Premier series accessories
- Product Height:
- 27.78 in
- Product Length Depth:
- 28.955 in
- Product Weight:
- 18.839 lb
- Product Width:
- 27.84 in
- Department:
- Electrical
- Product Group:
- Panels & Plates
- Product Subgroup:
- Panel Accessories
- Product Type:
- Swing-out panels
- Product Details:
- Swing-out panels
- Product Style:
- Galvanized panel
B-LINE 3030SP – Frequently Asked Questions
1) Will adding a swing-out panel affect the NEMA 4 rating of my enclosure?
No. The 3030SP is a Premier series accessory rated to NEMA 4 and UL Listed, so it is intended to be installed inside a NEMA 4 enclosure without compromising the wash-down and hose-directed-water protection the enclosure is built for. It mounts internally and does not penetrate the enclosure shell.
2) What is a swing-out panel for in an electrical enclosure, and when would I use one instead of a flat back panel?
A swing-out panel hinges out of the enclosure so you get component mounting on both the swing panel and the back panel behind it, and you can reach wiring behind the swing panel without pulling components. Use one when you are tight on mounting real estate or need operator-side devices like relays, PLCs, or terminal blocks accessible for service. A plain back panel is the simpler choice if you have room and nothing needs rear access.
3) How heavy is the 3030SP swing-out panel, and is it a one-person install?
The panel weighs 18.839 lb bare. That is manageable for one person to hang, but once you load it with contactors, drives, and a wiring duct it gets front-heavy on the hinge, so plan on a second set of hands for final positioning and make sure your enclosure hinge hardware is rated for the loaded weight.
4) Can I order the 3030SP swing-out panel in a different size or color?
The 3030SP is a single configuration: white powder coated, 14 gauge, in the 30 x 30 size. There are no finish or size options to specify on this model. If you need a different enclosure size, you need the matching swing-out panel part number for that enclosure.
