B-Line 1620SP Eaton series premier series accessories, NEMA 4, White polyester powder coated, Swing-out panels help with components mounting, Premier series accessories, 14 gauge thickness

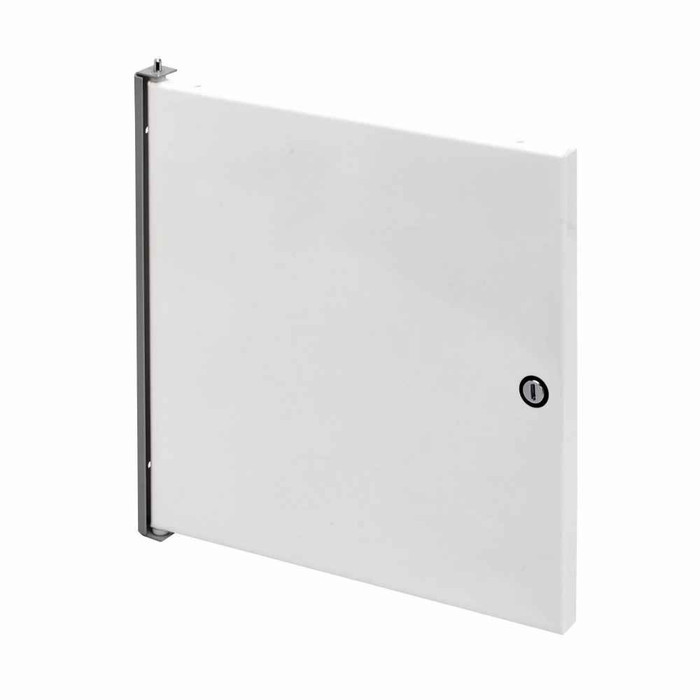

The 1620SP is a 16 x 16 inch swing-out panel, sized for Eaton B-Line Premier series enclosures with a 16 by 16 inch back area. It is an accessory panel, so the enclosure itself is separate. Match the panel dimensions to the enclosure's interior mounting area before ordering.

The 1620SP carries a UL Listed marking and is a NEMA 4 rated Premier series accessory, so it is intended for use in NEMA 4 enclosures, the rating covering hosedown and rain-tight service. The rating belongs to the enclosure system, so the enclosure and its gasketing are what keep water out; the panel is the component mounting surface inside.

A swing-out panel hinges forward so you can mount components on it and still reach wiring and terminals behind it. On a 16 x 16 inch enclosure that roughly doubles your usable mounting area, since you keep the fixed back panel for larger gear and put controls, relays or terminal blocks on the swing-out. If you never need rear access and space isn't tight, a plain back panel is the simpler choice.

It weighs 6.912 lb bare, and it's 14 gauge steel, which is the same stock Eaton uses for enclosure panels, stiff enough to carry relays, contactors, terminal strips and small drives without flexing at the hinge. Remember the hinge carries both the panel and everything you bolt to it, so keep the heaviest gear on the fixed back panel.

White polyester powder coat, which is the standard interior panel finish on Eaton B-Line Premier series enclosures, so it matches the white interiors those boxes ship with. The light finish also makes wire labels and printed component legends easier to read in a field cabinet.
