B-Line B333-1YZN Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$168.14
$160.10

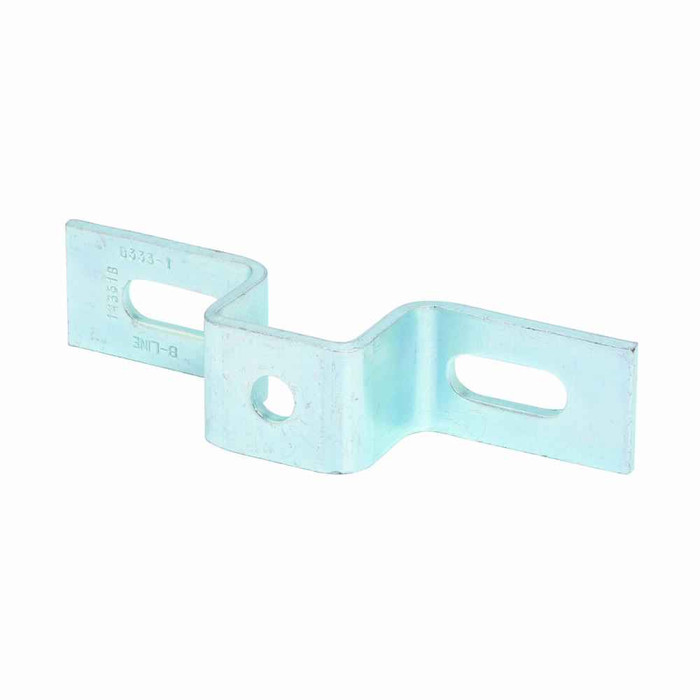

B-Line B333-1YZN Eaton series strut fittings and accessories, 1.85" Height, 7.5" Length, 1.62" Width, 1.03lbs, Steel, Slot size 9/16 in X 1-1/2 in, Slotted three hole u-support, Yellow zinc chromate

B-Line B333-1YZN Eaton series strut fittings and accessories, 1.85" Height, 7.5" Length, 1.62" Width, 1.03lbs, Steel, Slot size 9/16 in X 1-1/2 in, Slotted three hole u-support, Yellow zinc chromate

(No reviews yet) Write a Review

Model: B333-1YZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$168.14
$160.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 1.85" Height, 7.5" Length, 1.62" Width, 1.03lbs, Steel, Slot size 9/16 in X 1-1/2 in, Slotted three hole u-support, Yellow zinc chromate

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
1.85 in
Product Length Depth:
7.5 in
Product Weight:
1.03 lb
Product Width:
1.62 in
Special Features:
Slot size 9/16 in X 1-1/2 in
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Supports
Product Type:
Slotted three hole u-support
Product Finish:
Yellow zinc chromate
Product Details:
Slotted three hole u-support
Product Material:
Steel

B-LINE B333-1YZN – Frequently Asked Questions

1) What slot size does the B333-1YZN have, and will 1/2 inch strut bolts pass through it?
The slots are 9/16 in x 1-1/2 in. A 9/16 inch slot width clears 1/2 inch strut hardware, and the 1-1/2 inch slot length gives you adjustment along each hole position rather than a fixed hole center, which is what lets you pick up an existing bolt pattern that is slightly off.
2) Will the B333-1YZN clear a 1-5/8 inch strut channel?
At 1.62 inches wide, the B333-1YZN matches the standard 1-5/8 inch strut channel width, so it sits flush on the face of a 1-5/8 inch run rather than overhanging it. Height is 1.85 inches, which is what determines the standoff from the channel face.
3) What is the B-Line B333-1YZN u-support used for?
The B333-1YZN is a slotted three hole u-support, a steel strut fitting used to bracket off a strut run or bridge between two points with bolt-through connections at three hole positions. It measures 7.5 inches long, 1.85 inches high and 1.62 inches wide, and weighs 1.03 lb, so it handles as a light one-hand fitting during layout.
4) Is the yellow zinc chromate finish on the B333-1YZN suitable for outdoor use?
Yellow zinc chromate is a plated finish intended for dry indoor and protected service. On a steel fitting it resists handling corrosion and incidental moisture, but for exterior, wash-down or corrosive areas you want a hot dip galvanized or stainless equivalent instead of the YZN plating.
5) Does the B-Line B333-1YZN come with bolts and channel nuts?
The B333-1YZN is the steel u-support fitting only. Strut nuts, bolts and washers are ordered separately, so plan on 1/2 inch strut hardware to match the 9/16 inch slots at each of the three hole positions.
6) What is the exact part number to order this Eaton B-Line u-support?
Order it as B-Line B333-1YZN. The B333 is the slotted three hole u-support and the YZN suffix designates the yellow zinc chromate plated finish.
