B-Line B270RSS4 Eaton series s...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$408.91

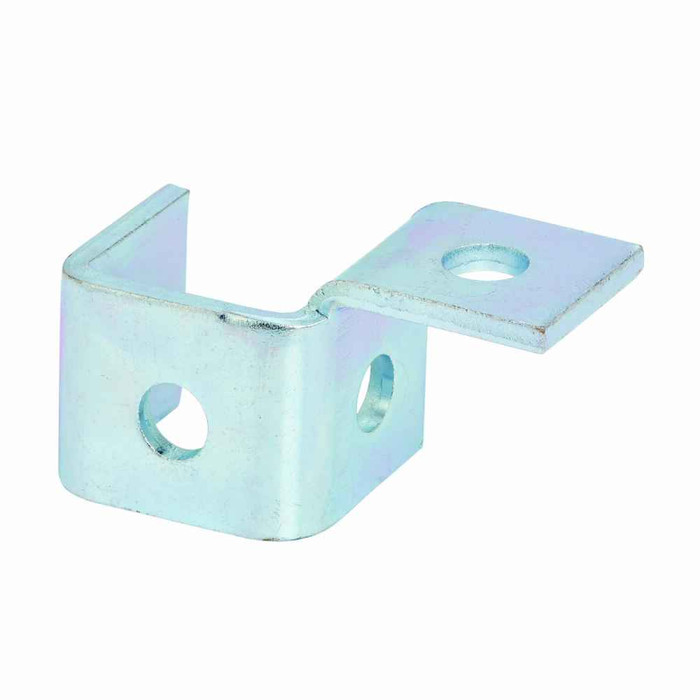

B-Line B270RSS4 Eaton series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Right hand four hole single corner wing fitting, Stainless steel type 304

B-Line B270RSS4 Eaton series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Right hand four hole single corner wing fitting, Stainless steel type 304

(No reviews yet) Write a Review

Model: B270RSS4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$408.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Right hand four hole single corner wing fitting, Stainless steel type 304

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.06 in
Product Length Depth:
3.81 in
Product Weight:
.77 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Right hand four hole single corner wing fitting
Product Finish:
Stainless steel type 304
Product Details:
Right hand four hole single corner wing fitting
Product Material:
Steel
Product Length:
3.81 in

B-LINE B270RSS4 – Frequently Asked Questions

1) Is the B-Line B270RSS4 wing fitting right hand or left hand?
The B270RSS4 is the right hand version of the four hole single corner wing fitting. Handing matters on a wing fitting, because the corner gusset only faces one way once the fitting is bolted to the strut. If your bracket has to turn the other direction at the corner, you need the left hand version instead, not this one.
2) Is the B270RSS4 corner fitting stainless steel, and will it hold up outdoors?
It is a steel fitting finished in stainless steel type 304, which is the grade normally specified for exterior, damp, and washdown runs where plain electro-zinc would rust out. Pair it with type 304 strut and 304 hardware so you are not mixing metals at the connection.
3) Does the B270RSS4 fitting come with bolts and channel nuts?
No. The B270RSS4 is the fitting only, four holes in a right hand single corner wing configuration. Order strut nuts, bolts and washers separately, and keep them in type 304 stainless to match the fitting finish on an exterior or corrosive run.
4) What is a single corner wing fitting used for in a strut system?
It ties two strut members together at a 90 degree corner, with the wing acting as the gusset that keeps the joint from racking. The four bolt holes split between the two legs, so you get two fasteners into each strut rather than a single pivot point. Typical uses are trapeze corners, support frames, and equipment stands built from channel.
5) What part number do I order for the right hand stainless corner wing fitting?
Order Eaton B-Line B270RSS4. The RSS4 suffix is the right hand, type 304 stainless version; the matching left hand fitting carries its own number, so do not substitute one for the other on a handed corner.
