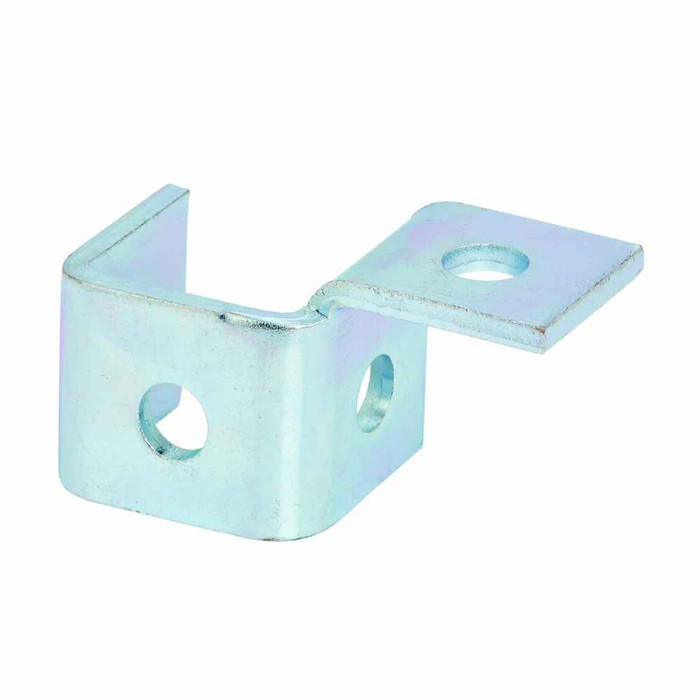

Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Right hand four hole single corner wing fitting, Hot-dipped galvanized
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 2.06 in
- Product Length Depth:
- 3.81 in
- Product Weight:
- .77 lb
- Product Width:
- 1.68 in
- Department:
- Electrical
- Product Type:
- Right hand four hole single corner wing fitting
- Product Finish:
- Hot-dipped galvanized
- Product Details:
- Right hand four hole single corner wing fitting
- Product Material:
- Steel
- Product Length:
- 3.81 in
B-LINE B270RHDG – Frequently Asked Questions
1) Is the B-Line B270RHDG wing fitting right hand or left hand?
B270RHDG is the right hand version. It's a right hand four hole single corner wing fitting, so handing matters: if your corner connection runs the other direction, you need the left hand mate instead. Order in pairs only if the job genuinely calls for both orientations.
2) Can the B-Line B270RHDG strut fitting be used outdoors or in a damp location?
The finish is hot-dipped galvanized steel, which is the coating normally specified for exterior, rooftop, and wet or corrosive indoor runs. Plain electro-galvanized fittings are the indoor-only option; this one is the outdoor-rated finish family.
3) How many bolts do I need to install a B270RHDG corner wing fitting?
It's a four hole fitting, so plan on four channel nuts and four bolts for a full-strength connection, split across the two legs of the corner. Strut nuts, bolts, and washers are not part of the fitting itself and are ordered separately.
4) What is a corner wing fitting actually used for on a strut run?
A wing fitting like the B270RHDG ties two pieces of strut together at a corner, carrying the connection around the angle instead of butting channel end to end. Contractors reach for it on equipment frames, trapeze supports, and conduit racks where the run changes direction and the joint still has to carry load. It's steel and bolts to the channel through four holes.
5) What part number should I give my distributor for the B-Line right hand corner wing fitting?
Order it as Eaton B-Line B270RHDG. The RHDG suffix reads as right hand, hot-dip galvanized, which is how you tell it from the left hand and the plain-finish versions in the same family.
