B-Line B270LZN Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$152.54
$138.87

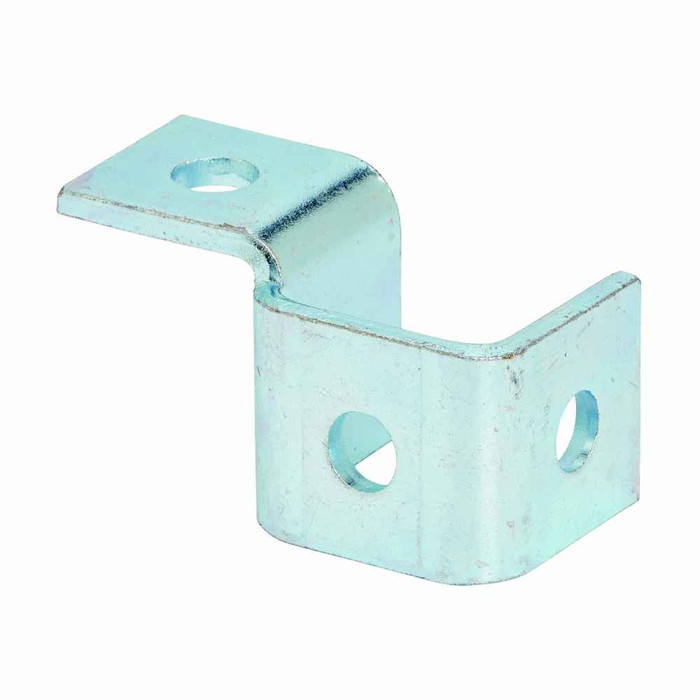

B-Line B270LZN Eaton series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Left hand four hole single corner wing fitting, Electro-plated

B-Line B270LZN Eaton series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Left hand four hole single corner wing fitting, Electro-plated

(No reviews yet) Write a Review

Model: B270LZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$152.54
$138.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 2.06" Height, 3.81" Length, 1.68" Width, .77lbs, Steel, Left hand four hole single corner wing fitting, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
2.06 in
Product Length Depth:
3.81 in
Product Weight:
.77 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Left hand four hole single corner wing fitting
Product Finish:
Electro-plated
Product Details:
Left hand four hole single corner wing fitting
Product Material:
Steel
Product Length:
3.81 in

B-LINE B270LZN – Frequently Asked Questions

1) Is the B-Line B270LZN a left hand or right hand wing fitting?
The B270LZN is the left hand version of the four hole single corner wing fitting. Corner wing fittings are handed, so if your connection turns the other direction you need the right hand part instead. Order by the direction the wing faces when the fitting is held against the strut as it will be installed.
2) Is the electro-plated finish on the B270LZN suitable for outdoor or damp locations?
The B270LZN is steel with an electro-plated finish, which is a dry indoor finish. For exterior runs, wash-down areas, parking structures, or anywhere with regular moisture, specify a hot dip galvanized or stainless corner fitting instead. Electro-plate will surface rust once it is wet repeatedly.
3) Are bolts and channel nuts included with the B270LZN corner fitting?
What ships is the fitting itself, a left hand four hole single corner wing in electro-plated steel. Strut fittings are sold as the bracket alone, so plan on ordering the hardware separately: four sets of strut channel nuts with springs and matching hex bolts, sized to the channel you are building with.
4) What is the Eaton B-Line part number I should quote for this fitting?
Quote B270LZN, the Eaton B-Line series designation for the left hand four hole single corner wing fitting in electro-plated steel. The Z in the suffix is the electro-plate finish code, so the equivalent part in another finish carries a different suffix.
5) Do I need a separate seismic or listing certification for the B270LZN?
No certification is carried on the B270LZN record. If your project drawings call out a listed or seismically rated support assembly, have the engineer of record specify the rated fitting and hardware package rather than substituting this standard electro-plated corner wing.
