B-Line B162ZN Eaton series str...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$89.39
$54.01

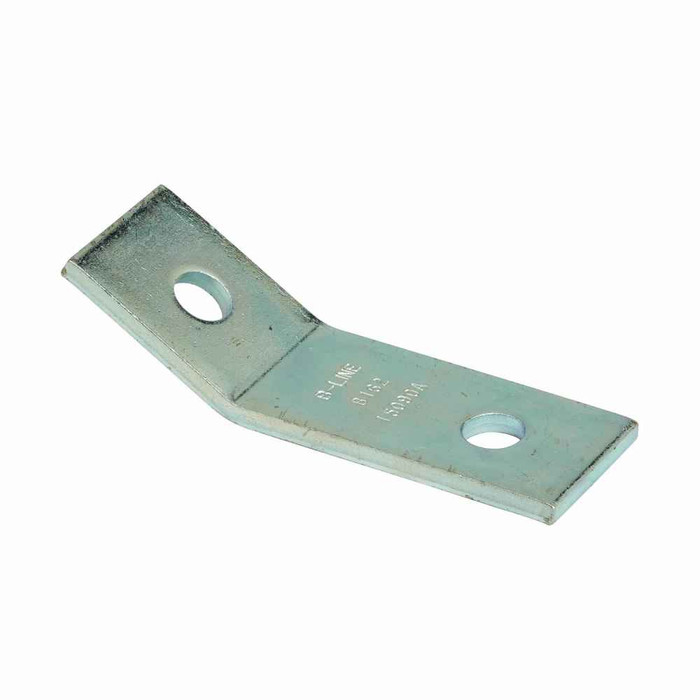

B-Line B162ZN Eaton series strut fittings and accessories, 3.31" Height, 4.37" Length, 1.62" Width, .546lbs, Steel, Two hole open angle, 30 deg, Thickness 7/32 in, Electro-plated

B-Line B162ZN Eaton series strut fittings and accessories, 3.31" Height, 4.37" Length, 1.62" Width, .546lbs, Steel, Two hole open angle, 30 deg, Thickness 7/32 in, Electro-plated

(No reviews yet) Write a Review

Model: B162ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$89.39
$54.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.31" Height, 4.37" Length, 1.62" Width, .546lbs, Steel, Two hole open angle, 30 deg, Thickness 7/32 in, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Material Gauge:
7/32"
Product Height:
3.31 in
Product Length Depth:
4.37 in
Product Weight:
.546 lb
Product Width:
1.62 in
Department:
Electrical
Product Type:
Two hole open angle, 30 deg
Product Finish:
Electro-plated
Product Details:
Two hole open angle, 30 deg
Product Material:
Steel

B-LINE B162ZN – Frequently Asked Questions

1) What is the B-Line B162ZN strut fitting used for?
The B162ZN is a two hole open angle fitting bent to 30 degrees, used to join strut channel at an off-square angle instead of the usual 90. Each leg carries one bolt hole, so it is a two-bolt connection: one bolt into the channel on each side of the angle. Steel construction with an electro-plated finish.
2) Is the electro-plated finish on the B162ZN suitable for outdoor or wet locations?
Electro-plated zinc is a light coating meant for dry, indoor, conditioned interiors: mechanical rooms, above ceilings, interior electrical rooms. For exterior runs, parking structures, wash-down areas or anywhere with regular moisture, specify a hot dip galvanized or stainless version of the same open angle instead.
3) Does the B-Line B162ZN come with bolts and channel nuts?
The B162ZN is supplied as the steel angle fitting only. The two holes take strut bolts and spring nuts sized to your channel, and those are ordered separately along with any washers your spec calls for. Plan on two bolt-and-nut sets per fitting.
4) How thick is the steel on the B-Line B162ZN angle fitting?
7/32 inch steel. That is the load-bearing section through the bend, and it is the number to check against the bracket you are replacing, since a thinner stamped angle will not behave the same way in a hanger or seismic brace run.
5) Do I order the B162ZN by that number, and is it an Eaton part?
Yes. B162ZN is the manufacturer part number, from the Eaton B-Line series of strut fittings and accessories. The ZN suffix corresponds to the electro-plated zinc finish, which is the point of difference from the same angle in other finishes.
6) Is the B-Line B162ZN a UL listed or certified fitting?
No listing or certification is carried against the B162ZN open angle; it is a plain structural strut fitting, not a listed electrical device. If your submittal requires a specific listing on support hardware, that requirement has to be met elsewhere in the assembly.
