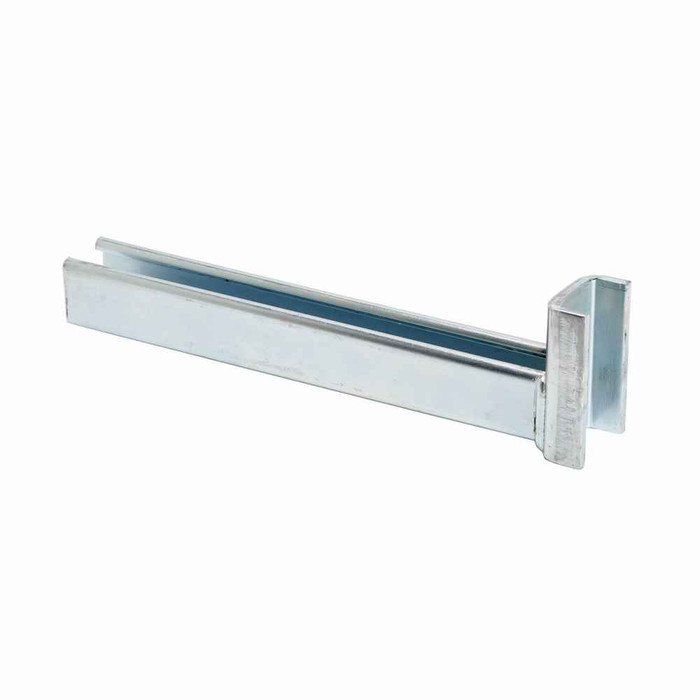

B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$18,989.64
B-Line Eaton series strut fittings and accessories, 3.5" Height, 12" Length, 1.62" Width, 2.84lbs, Steel, Clevis bracket, Uniform load capacity 800 lb

B-Line Eaton series strut fittings and accessories, 3.5" Height, 12" Length, 1.62" Width, 2.84lbs, Steel, Clevis bracket, Uniform load capacity 800 lb

(No reviews yet) Write a Review

Model: B198-12GRN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18,989.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.5" Height, 12" Length, 1.62" Width, 2.84lbs, Steel, Clevis bracket, Uniform load capacity 800 lbs, DURA GREEN

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
3.5 in
Product Length Depth:
12 in
Product Weight:
2.84 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Clevis bracket
Product Finish:
DURA GREEN
Product Details:
Clevis bracket
Product Material:
Steel
Product Length:
12 in

B-LINE B198-12GRN – Frequently Asked Questions

1) How much load will the B-Line B198-12GRN clevis bracket carry?
The Eaton B-Line B198-12GRN clevis bracket is rated for a uniform load of 800 lbs. That is the figure to size your pipe or conduit run against, and it applies to the bracket itself, so the strut, anchors and rod you hang it from need to be rated at least as high or they become the weak point.
2) What size is the B198 clevis bracket and how far does it span?
The B198-12GRN measures 12 inches on the length, 3.5 inches on the height and 1.62 inches on the width, and it weighs 2.84 lbs. The 12 inch dimension is what sets how far off the strut or wall you can carry the hung load, so check it against the offset your conduit or pipe run needs before ordering.
3) What is DURA GREEN finish on B-Line strut fittings, and where can I use it?
DURA GREEN is Eaton B-Line's coated steel finish, applied over the steel body of the B198-12GRN bracket. It gives you more protection than a plain or electro-galvanized part in damp interior and sheltered areas. For fully exposed exterior or corrosive process environments, buyers normally step up to a hot dip galvanized or stainless fitting instead.
4) Is a clevis bracket the right part for hanging conduit, or should I use a strut clamp?
A clevis bracket like the B198 is for carrying a load out on an arm, off a strut channel or a wall, where the pipe or conduit sits away from the mounting surface. If your run sits directly on the channel, a strut pipe clamp or conduit strap is the simpler and cheaper choice. Use the clevis when you need the 12 inch offset and an 800 lb uniform capacity at that arm.
5) Does the B-Line B198-12GRN bracket come with the bolts, nuts or channel nuts to mount it?
The B198-12GRN is supplied as the steel clevis bracket only. Channel nuts, bolts, washers and any threaded rod or anchors for the mounting surface are separate line items, so add them to the order with the bracket or you will be short on the install.
6) How do I order the right B-Line B198 bracket so it matches the others already on the job?
Order by the manufacturer part number B198-12GRN. That number pins down the 12 inch length and the DURA GREEN finish together, so a second order will match what is already hung. If the existing brackets on site are a different color or a different arm length, they are a different B198 part number and will not visually or dimensionally match.
