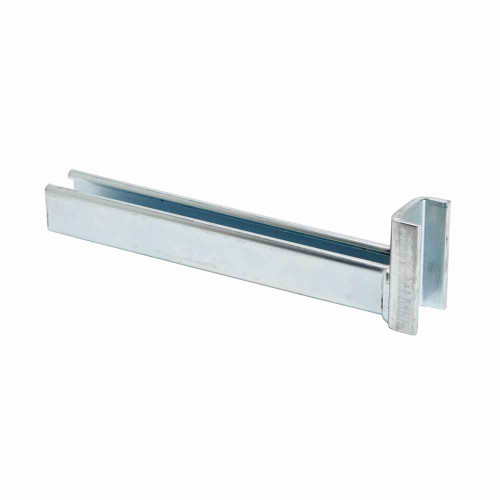

B-Line B198-6ZN Eaton series s...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$162.59
$152.39
B-Line B198-6ZN Eaton series strut fittings and accessories, 3.5" Height, 6" Length, 1.62" Width, 1.85lbs, Steel, Clevis bracket, channel opening upward, Uniform load capacity 1600 lbs, Electro-plated

B-Line B198-6ZN Eaton series strut fittings and accessories, 3.5" Height, 6" Length, 1.62" Width, 1.85lbs, Steel, Clevis bracket, channel opening upward, Uniform load capacity 1600 lbs, Electro-plated

(No reviews yet) Write a Review

Model: B198-6ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$162.59
$152.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.5" Height, 6" Length, 1.62" Width, 1.85lbs, Steel, Clevis bracket, channel opening upward, Uniform load capacity 1600 lbs, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
3.5 in
Product Length Depth:
6 in
Product Weight:
1.85 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Brackets
Product Type:
Clevis bracket, channel opening upward
Product Finish:
Electro-plated
Product Details:
Clevis bracket, channel opening upward
Product Material:
Steel

B-LINE B198-6ZN – Frequently Asked Questions

1) How much load will the B-Line B198-6ZN clevis bracket carry?
The B198-6ZN clevis bracket is rated for a uniform load of 1600 lbs. That is a uniform rating, so a point load concentrated at one end of the 6 inch bracket will not see the same number. The bracket itself is steel and weighs 1.85 lb.
2) Which way does the channel face on the B-Line B198-6ZN bracket?
Channel opening faces upward on the B198-6ZN. That matters when you are hanging pipe or conduit off a structural member: the strut slot sits on top, so you drop your spring nuts and clamps in from above. If your layout needs the slot facing down or sideways, this is the wrong fitting for the run.
3) What are the dimensions of the B198-6ZN clevis bracket?
It measures 3.5 in height, 6 in length/depth, and 1.62 in width. The 1.62 in dimension is what you check against the strut and clamps you plan to use, since standard strut channel is 1-5/8 in wide.
4) Is the B-Line B198-6ZN clevis bracket suitable for outdoor or wet locations?
The B198-6ZN is steel with an electro-plated zinc finish, which is a dry indoor-service coating. For exterior, damp, or corrosive environments you want a hot-dip galvanized or stainless fitting instead.
5) Does the B-Line B198-6ZN bracket come with the hardware to mount it?
The B198-6ZN is supplied as the bracket alone. Bolts, spring nuts, channel nuts, and the rod or anchors for your attachment point are ordered separately and sized to your strut and structure.
6) What part number do I order for the Eaton B-Line upward-opening clevis bracket?
Order it as B198-6ZN, an Eaton B-Line series strut fitting. The ZN suffix is the electro-plated zinc finish.
