B-Line B274LZN Eaton series st...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$331.77

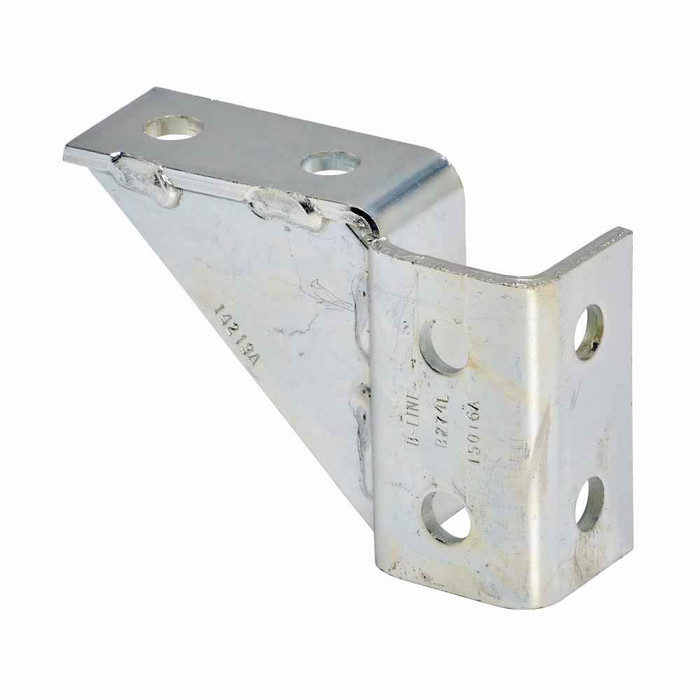

B-Line B274LZN Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Electro-plated

B-Line B274LZN Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Electro-plated

(No reviews yet) Write a Review

Model: B274LZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$331.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
3.93 in
Product Length Depth:
5.67 in
Product Weight:
1.76 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Left hand eight hole single corner gussetted wing fitting
Product Finish:
Electro-plated
Product Details:
Left hand eight hole single corner gussetted wing fitting
Product Material:
Steel

B-LINE B274LZN – Frequently Asked Questions

1) Is the B-Line B274LZN strut fitting left hand or right hand?
The B274LZN is the left hand version of the eight hole single corner gussetted wing fitting. Handing matters on this part because the gusseted wing is offset to one side, so a left hand fitting will not mirror correctly where a right hand is called for. Confirm which way the wing turns off the strut run before you order.
2) Is the B274LZN strut fitting suitable for outdoor or damp locations?
It is steel with an electro-plated finish. Electro-plating is a light zinc coating intended for dry indoor service, so for exterior runs, parking structures, or wash-down areas you want a hot dip galvanized or stainless equivalent instead of this one.
3) What are the dimensions of the B-Line B274LZN wing fitting?
It measures 3.93 in height, 5.67 in length/depth and 1.68 in width, and weighs 1.76 lb. The 1.68 in width is the figure to check first: it tells you the fitting is sized to sit against standard strut face rather than straddle a wider channel, so lay it against your run before you drill anything.
4) How many bolt holes does the B274LZN corner fitting have, and do bolts come with it?
Eight holes, split across the two legs of the corner so you can bolt into both the vertical and horizontal strut runs. The fitting is supplied on its own, so order your channel nuts, bolts and washers separately to suit the strut you are fastening to.
5) What part number do I order to match existing B-Line strut corner fittings in my building?
Order by the Eaton B-Line part number B274LZN. That designation covers the left hand eight hole gussetted wing corner in steel with the electro-plated finish, so if your other openings or racks were built with the same number, the replacement will match the existing hole pattern and finish.
