B-Line B274LSS6 Eaton series s...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,435.07

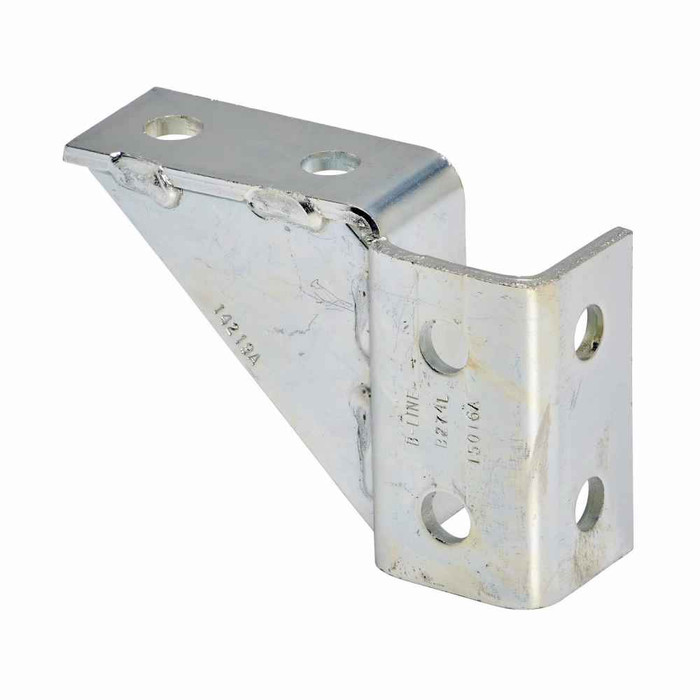

B-Line B274LSS6 Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Stainless steel type 316

B-Line B274LSS6 Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Stainless steel type 316

(No reviews yet) Write a Review

Model: B274LSS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,435.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Left hand eight hole single corner gussetted wing fitting, Stainless steel type 316

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
3.93 in
Product Length Depth:
5.67 in
Product Weight:
1.76 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Left hand eight hole single corner gussetted wing fitting
Product Finish:
Stainless steel type 316
Product Details:
Left hand eight hole single corner gussetted wing fitting
Product Material:
Steel
Product Length:
5.67 in

B-LINE B274LSS6 – Frequently Asked Questions

1) Is the B-Line B274LSS6 wing fitting left hand or right hand, and does the handing matter?
It is the left hand version. The B274LSS6 is a left hand eight hole single corner gusseted wing fitting, so the gusset and the offset wing are oriented one way only. If your corner needs the mirror-image orientation, the left hand part will not sit flat against the strut and you need the right hand equivalent instead.
2) Is the B274LSS6 fitting suitable for outdoor, coastal, or wash-down installations?
Yes. The B274LSS6 is a steel fitting finished in Type 316 stainless, which is the grade specified for marine, coastal, water treatment, and chemical wash-down environments where plain electro-galvanized strut hardware corrodes. Pair it with Type 316 strut, bolts, and channel nuts, since mixing 316 with plated carbon steel fasteners puts the weakest metal at the joint.
3) How many bolt holes does the B274LSS6 have, and do bolts and channel nuts come with it?
Eight holes, split across the two legs of the corner so you can bolt into strut running in both directions. The fitting ships as the bracket alone, so order your bolts, channel nuts, and washers separately. For a 316 stainless installation, specify 316 stainless fasteners to match the fitting.
4) What size is the B-Line B274LSS6 corner wing fitting?
The B274LSS6 measures 3.93 x 5.67 x 1.68 inches (height, length, width as published) and weighs 1.76 lb. Those numbers matter when you are bracing into a tight corner or against an obstruction: the 5.67 inch leg dimension is the reach you need clear along the strut, and the 1.68 inch width is what sits across the channel face.
5) What is the difference between a gusseted wing fitting and a plain flat corner angle for strut?
A plain flat angle relies only on the bolts to resist the corner opening up. The gusset on the B274LSS6 is a formed web across the inside of the corner, which stiffens the 90 degree joint against deflection under load, so it is the choice for braced trapeze supports and cantilevered runs rather than light alignment work. It is handed, though (this one is left hand), where a flat plate angle is not, so you have to order the correct side.
6) What is the exact part number to order this Eaton B-Line corner fitting?
Order it as B-Line B274LSS6. The SS6 suffix is the Type 316 stainless version of the B274L left hand gusseted wing fitting, so if a submittal calls out plain B274L you are looking at a different finish, not this part.
