B-Line B274RSS6 Eaton series s...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,435.07

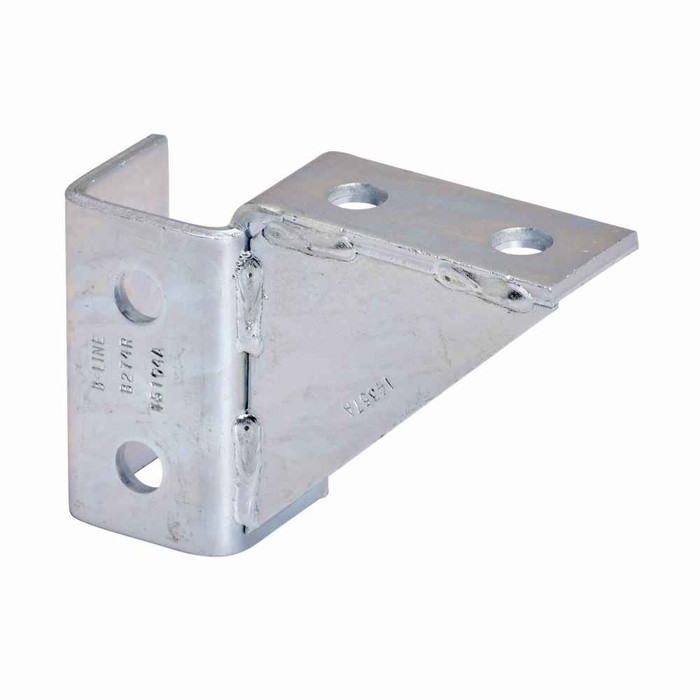

B-Line B274RSS6 Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Right hand eight hole single corner gussetted wing fitting, Stainless steel type 316

B-Line B274RSS6 Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Right hand eight hole single corner gussetted wing fitting, Stainless steel type 316

(No reviews yet) Write a Review

Model: B274RSS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,435.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Right hand eight hole single corner gussetted wing fitting, Stainless steel type 316

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
3.93 in
Product Length Depth:
5.67 in
Product Weight:
1.76 lb
Product Width:
1.68 in
Department:
Electrical
Product Type:
Right hand eight hole single corner gussetted wing fitting
Product Finish:
Stainless steel type 316
Product Details:
Right hand eight hole single corner gussetted wing fitting
Product Material:
Steel
Product Length:
5.67 in

B-LINE B274RSS6 – Frequently Asked Questions

1) Is the B-Line B274RSS6 wing fitting right hand or left hand?
It's the right hand version. The B274RSS6 is a right hand eight hole single corner gussetted wing fitting, so the wing turns off the corner in one direction only. If your connection runs the other way off the strut, you need the left hand equivalent instead. Mock the joint up before ordering, because a handed gussetted fitting will not flip over and still land its holes where you need them.
2) Is the B274RSS6 strut fitting suitable for outdoor or corrosive environments like wastewater or coastal sites?
Yes. The B274RSS6 is finished in stainless steel type 316, which is the grade specified for marine, coastal, wastewater and chemical exposure where standard zinc plated or even 304 stainless gets attacked. If your strut run is plain electro-galvanized, pair it with 316 hardware carefully, since the fitting will outlast the channel it's bolted to.
3) Does the B274RSS6 come with bolts and channel nuts?
The B274RSS6 is the fitting only. Strut fittings are supplied bare, so you order your channel nuts, bolts and washers separately. Since the fitting is type 316 stainless, match the fasteners in 316 as well, otherwise you create a dissimilar metal couple at the exact joint you specified stainless to protect.
4) What part number do I order for the Eaton B-Line right hand gussetted corner wing fitting in 316 stainless?
Order B274RSS6 from Eaton B-Line. The RSS6 suffix is the type 316 stainless version of the B274R right hand fitting, so quote the full B274RSS6 on the purchase order, not just B274, or you'll be shipped a different finish.
5) Is the B274RSS6 stainless throughout or just a stainless coating?
The material is listed as steel with a stainless steel type 316 finish designation. For ordering purposes, the 316 designation is the corrosion class you are buying against, and that's the spec to quote on a submittal where the drawing calls for 316 stainless strut hardware.
