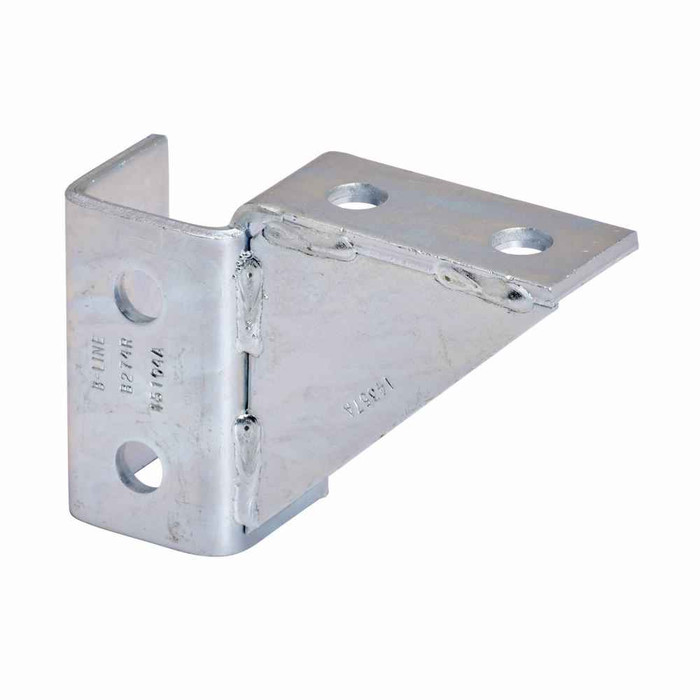

B-Line B274RZN Eaton series strut fittings and accessories, 3.93" Height, 5.67" Length, 1.68" Width, 1.76lbs, Steel, Right hand eight hole single corner gussetted wing fitting, Electro-plated

The B274RZN is the right hand version of the eight hole single corner gussetted wing fitting. Handing matters on gussetted wing fittings because the gusset sits on one side of the corner only, so a right hand part cannot be flipped to serve a left hand corner without putting the gusset on the wrong face. If your corner runs the other direction, you need the left hand equivalent in the same B-Line series.

No. The B274RZN ships as the fitting only. You supply the strut nuts and hex head bolts for all eight holes, sized to your channel, so order those separately on the same job line or the crew will be short at install.

Order Eaton B-Line part number B274RZN. The RZN suffix identifies the right hand part in the electro-plated zinc finish, so quoting the full number avoids getting shipped the opposite hand or a different coating.

Eaton B-Line lists the B274RZN at 3.93 in height, 5.67 in length/depth and 1.68 in width, weighing 1.76 lb. The 1.68 in width is the figure to check first, since it tells you whether the fitting sits cleanly against the strut face and clears adjacent hardware in a tight corner.

The B274RZN is steel with an electro-plated (zinc) finish. Electro-plated coatings are intended for dry indoor service; for exterior runs, wash-down areas or corrosive environments, specify a hot dip galvanized or stainless equivalent instead of the ZN version.

Each B274RZN handles one corner in the right hand orientation only, since it is a single corner fitting. A rectangular frame with four braced corners typically needs a mix of right and left hand parts depending on which face each gusset lands on, so count the corners by orientation before you order rather than buying four of the same hand.
