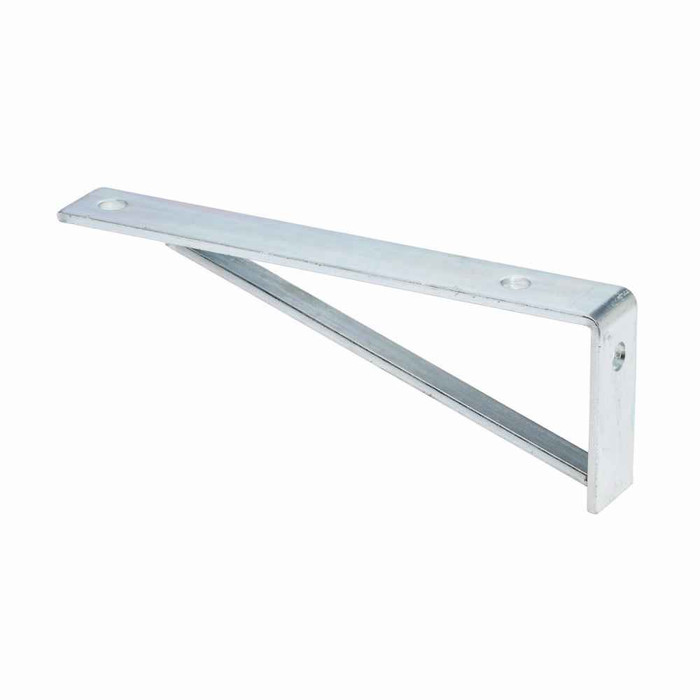

Eaton B-Line series strut fittings and accessories, 4" Height, 12" Length, 1.62" Width, 2.41lbs, Steel, Bracket, Uniform load capacity 1080 Lbs, Stainless steel type 304
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 4 in
- Product Length Depth:
- 12 in
- Product Weight:
- 2.41 lb
- Product Width:
- 1.62 in
- Special Features:
- 2 holes,(1) 9/16 In dia,Hole spacing on top5-5/16"
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Bracket
- Product Finish:
- Stainless steel type 304
- Product Details:
- Bracket
- Product Material:
- Steel
B-LINE B188SS4 – Frequently Asked Questions
1) What size strut does the B-Line B188SS4 bracket bolt to, and what is the hole pattern?
The B188SS4 is a strut bracket with two holes, one of them 9/16 inch diameter, and 5-5/16 inch hole spacing on top. Match that 5-5/16 inch spacing against your channel hole pattern before ordering, and plan on 1/2 inch strut nuts or bolts to suit the 9/16 inch clearance hole.
2) Is the B188SS4 bracket stainless, and can it go outdoors or in a wash-down area?
The material is steel with a stainless steel type 304 finish. Type 304 is the common general-purpose stainless grade and handles damp, outdoor and wash-down environments better than plain or plated carbon steel. For chloride-heavy exposure such as coastal or pool chemistry, 316 is the grade normally specified instead.
3) What are the actual dimensions of the B-Line B188SS4 strut bracket?
It measures 12 inches long, 4 inches high and 1.62 inches wide, and weighs 2.41 lbs. The 1.62 inch width is the giveaway that it is sized to sit on standard 1-5/8 inch strut channel, so it lands flush on the channel face rather than overhanging it.
4) Does the B188SS4 bracket come with the strut nuts and bolts to mount it?
No. The B188SS4 is the bracket only. You supply the channel nuts, bolts and washers, and on a 304 stainless install you should be matching the fasteners to the same stainless grade so you do not set up galvanic corrosion at the connection.
5) What is the exact part number for this Eaton B-Line stainless strut bracket?
Order it as B-Line (Eaton) model B188SS4. The SS4 suffix corresponds to the type 304 stainless finish, so if a drawing calls for the plain or plated version of the same bracket it will carry a different suffix.
