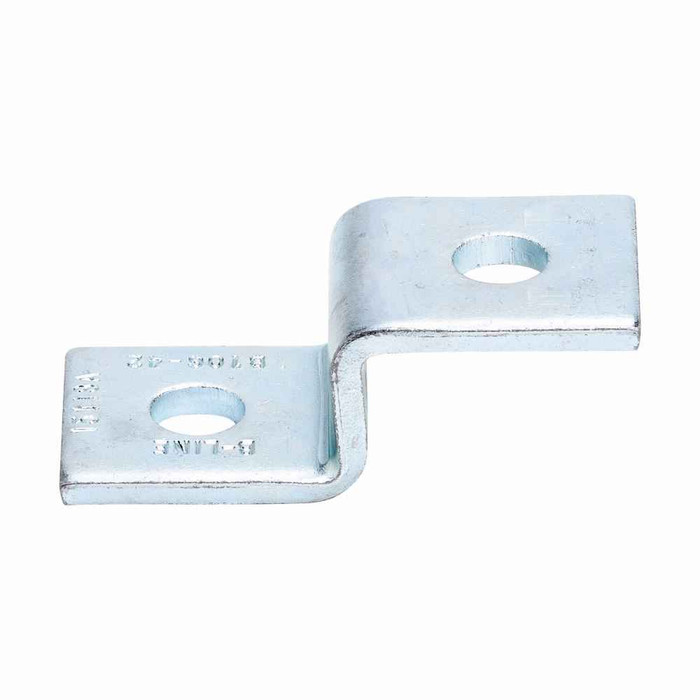

B-Line B106-52ZN Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$88.48
$52.09
B-Line B106-52ZN Eaton series strut fittings and accessories, .811" Height, 3.5" Length, 1.62" Width, .40lbs, Steel, Offset size 13/16 in, Two hole z-support, Thickness 1/4 in, Fits channel type B42, Electro-plated

B-Line B106-52ZN Eaton series strut fittings and accessories, .811" Height, 3.5" Length, 1.62" Width, .40lbs, Steel, Offset size 13/16 in, Two hole z-support, Thickness 1/4 in, Fits channel type B42, Electro-plated

(No reviews yet) Write a Review

Model: B106-52ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.48
$52.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, .811" Height, 3.5" Length, 1.62" Width, .40lbs, Steel, Offset size 13/16 in, Two hole z-support, Thickness 1/4 in, Fits channel type B42, Electro-plated

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
For Channel Type:
Fits channel type B42
Material Gauge:
1/4"
Product Height:
.811 in
Product Length Depth:
3.5 in
Product Weight:
.4 lb
Product Width:
1.62 in
Special Features:
Offset size 13/16 in
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Supports
Product Type:
Two hole z-support
Product Finish:
Electro-plated
Product Details:
Two hole z-support
Product Material:
Steel
Product Length:
3.5 in

B-LINE B106-52ZN – Frequently Asked Questions

1) How much offset does the B106-52ZN z-support give between the two mounting planes?
It offsets 13/16 inch. That is the step between the two bolt holes, so use it where you need to pick up a surface that sits just over three-quarters of an inch off the channel face rather than flush.
2) Do I get the bolts and channel nuts with the B106-52ZN z-support?
You are buying the steel z-support fitting itself. Channel nuts, bolts, and washers are ordered separately, so add the hardware for your B42 channel to the same order if you do not already stock it.
3) What are the dimensions and steel thickness of the B106-52ZN two hole z-support?
The fitting measures .811 in height, 3.5 in length, and 1.62 in width, in 1/4 inch thick steel, and weighs .4 lb. The 1/4 inch stock is what lets a short two hole bracket carry load in an offset condition instead of flexing at the step.
4) Is the electro-plated finish on the B106-52ZN okay for outdoor or wet strut runs?
Electro-plated zinc is a dry indoor finish. It is right for conditioned interior spaces, mechanical rooms, and covered areas. For exterior, wash-down, or corrosive locations, spec a hot dip galvanized or stainless strut fitting instead.
5) When should I use a z-support instead of a flat plate or angle fitting on strut?
Use the z-shape when the two surfaces you are joining are not in the same plane. The B106-52ZN carries a 13/16 inch step between its two holes, so it bridges that offset in one piece. If both faces are flush, a flat two hole splice plate is the simpler part; if you need a 90 degree turn, an angle fitting is the one to pull.
