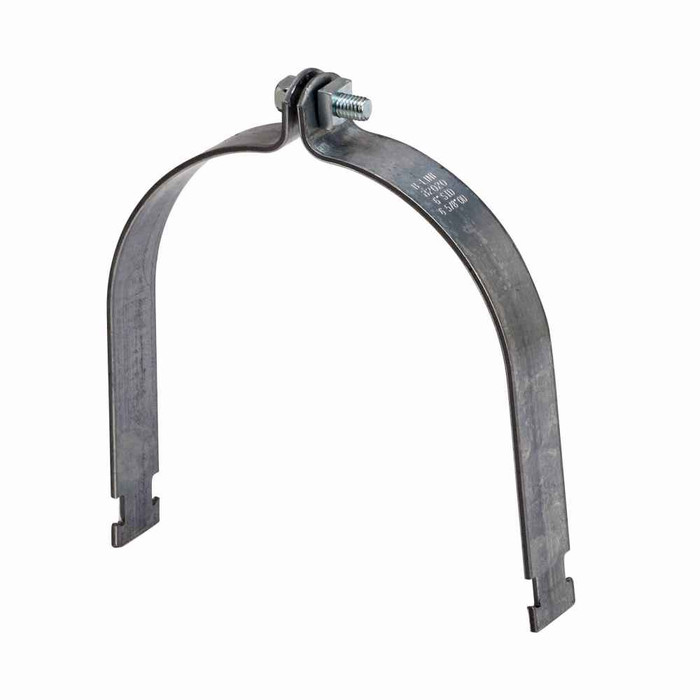

Eaton B-Line series strut pipe clamps and accessories, .0994" height, 6.141" length, 1.25" width, Steel, Includes combination recess hex head machine screw, Pipe or conduit clamps, Electro-plated zinc
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- .0994 in
- Product Length Depth:
- 6.141 in
- Product Weight:
- .61 lb
- Product Width:
- 1.25 in
- Special Features:
- Includes combination recess hex head machine screw
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Conduit Accessories
- Product Type:
- Pipe or conduit clamps
- Product Details:
- Pipe or conduit clamps
- Product Material:
- Steel
B-LINE B2016ZN – Frequently Asked Questions
1) Does the B-Line B2016ZN strut pipe clamp come with the mounting screw, or do I have to order hardware separately?
The screw is included. The B2016ZN ships with a combination recess hex head machine screw, so you only need the strut nut or channel hardware appropriate to your strut run. That is one less loose part to chase on a job with a lot of hangers.
2) What is the B-Line B2016ZN made of and will the zinc finish hold up indoors?
Steel with an electro-plated zinc finish. Electro-plated zinc is a general indoor and protected-area finish, common for conduit support in mechanical rooms, ceilings and dry interior runs. For sustained wet, exterior or corrosive exposure, specify a hot dip galvanized or stainless clamp instead.
3) Is a strut pipe clamp like the B-Line B2016ZN the right thing for supporting conduit, or should I use a one-hole strap?
A strut clamp is for pipe or conduit carried on a channel framing run, not fastened flat to a wall or deck. The B2016ZN bolts to strut with its included machine screw and holds the run off the structure, which is what you want for multiple parallel conduits, for trapeze supports, or where you need the run spaced away from the surface. If you are fastening a single conduit directly to masonry or stud, a one-hole or two-hole strap is the simpler and cheaper part.
4) How do I order the exact B-Line clamp so I get the zinc one and not a different finish?
Order by part number B2016ZN from Eaton B-Line. The ZN suffix is the electro-plated zinc version of the steel clamp. Give that full designation to your supplier rather than just the base number, since B-Line runs the same clamp body in other finishes.
5) What size is the B2016ZN strut clamp and how much does one weigh for a bulk order?
The B2016ZN measures 6.141 x 1.25 x .0994 inches and weighs .61 lb each. Multiply that weight out when you are pricing freight on a full hanger package, and use the 1.25 inch width to check spacing where clamps sit close together on a single strut run.
