B-Line Eaton series strut pipe clamps and accessories, .104" height, 6.141" length, 1.25" width, Steel, Includes combination recess hex head machine s

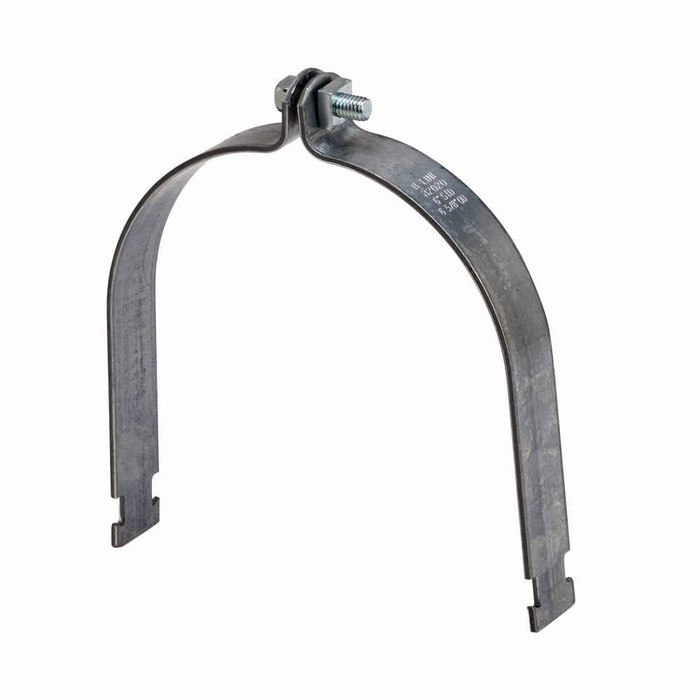

The B2016SS6 is a type 316 stainless steel strut clamp. Type 316 is the grade to specify for wet, washdown, coastal, or chemically aggressive runs where plated carbon steel clamps rust out. If your job only needs indoor dry-location support, a plated steel clamp is the cheaper route; pick 316 when corrosion is the reason for the choice.

The mounting screw ships with it. Each B2016SS6 clamp includes a combination recess hex head machine screw, so the clamp and its fastener come together. You still supply the strut channel and, depending on how you are attaching, the channel nut for the run.

Dimensions are 6.141 inches (length/depth), 1.25 inches wide, and .104 inch thick, at .61 lb. That .104 inch figure is the strap stock thickness, and the 6.141 inch length is the developed strap, not the pipe diameter, so map it against the pipe OD you are supporting before you commit to a quantity.

That is exactly the application for a strut-mounted pipe clamp like the B2016SS6: it bolts to the face of strut channel rather than to the deck or a beam, so it suits rooftop and overhead racked conduit and pipe runs. The type 316 stainless construction is what makes it appropriate outdoors, where a plated clamp would corrode at the screw and the strap.

Order Eaton B-Line B2016SS6. That single part number covers the clamp with its combination recess hex head machine screw included, in type 316 stainless, so there is no separate finish or material suffix to pick.

No listing or certification is carried on the B2016SS6, and it is not an item that requires one; certifications are recorded as Not Applicable. Specify it on the submittal by manufacturer part number, B2016SS6 from Eaton B-Line, with the 316 stainless material called out.
