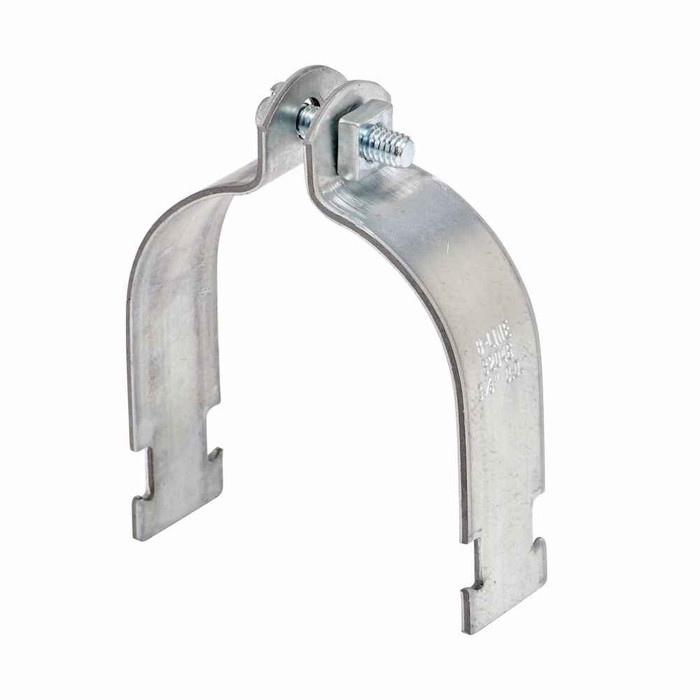

B-Line Eaton series strut pipe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,546.33
B-Line Eaton series strut pipe clamps and accessories, .0994" height, 6.406" length, 1.25" width, 1000 lbs, Steel, Include combination recess hex head

B-Line Eaton series strut pipe clamps and accessories, .0994" height, 6.406" length, 1.25" width, 1000 lbs, Steel, Include combination recess hex head

(No reviews yet) Write a Review

Model: B2056ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,546.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut pipe clamps and accessories, .0994" height, 6.406" length, 1.25" width, 1000 lbs, Steel, Include combination recess hex head machine screw, O.D pipe conduit clamp, Electro-plated zinc, 3/8 - 16

Manufacturer Resources

Product Specs

Bolt Pin Size:
3/8"-16
Certifications:
Not Applicable
Load Capacity:
1000 lbs
Product Height:
.0994 in
Product Length Depth:
6.406 in
Product Weight:
.64 lb
Product Width:
1.25 in
Special Features:
Include combination recess hex head machine screw
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
O.D pipe conduit clamp
Product Details:
O.D pipe conduit clamp
Product Material:
Steel

B-LINE B2056ZN – Frequently Asked Questions

1) What size hardware does the B-Line B2056ZN strut pipe clamp use, and is the screw included?
The B2056ZN takes 3/8-16 bolt hardware, and it ships with a combination recess hex head machine screw. So you are not sourcing the fastener separately, but you still need the strut nut and the channel itself to make up the assembly.
2) Is the B2056ZN clamp sized by pipe O.D. or by nominal trade size?
It is an O.D. pipe conduit clamp, meaning it is selected against the actual outside diameter of the pipe or conduit rather than a nominal trade size. Measure the OD of what you are hanging before you order, since rigid conduit, EMT and steel pipe of the same nominal call-out do not share an OD.
3) Will the B-Line B2056ZN hold up in a damp mechanical room or parking garage?
The B2056ZN is steel with an electro-plated zinc finish. That is a standard indoor, dry-to-moderately-dry service coating. For sustained wet, washdown, coastal or exterior exposure, specify a hot dip galvanized or stainless clamp instead.
4) What else do I need to order with the B2056ZN to mount conduit to strut?
The clamp comes with its 3/8-16 combination recess hex head machine screw. You supply the strut channel and a 3/8-16 strut nut or spring nut to receive the screw. For multiple parallel runs, order one clamp per pipe per support point.
5) What are the dimensions and weight of the B2056ZN strut clamp for takeoff purposes?
Published figures are 6.406 in length, 1.25 in width, .0994 in height, and .64 lb each. Useful for figuring hanger spacing clearance and for calculating dead load on a long run of conduit.
6) Can I use the B-Line B2056ZN on a job that requires a listed or certified support?
No certification is carried on the B2056ZN, so if your drawing or spec calls for a listed support component, confirm the specified listing is met by another product before you submit this one. It is a mechanical strut clamp supplied for electrical conduit and pipe support.
7) What is the correct B-Line part number to reorder this conduit clamp?
Order it as B-Line (Eaton) B2056ZN. The ZN suffix denotes the electro-plated zinc finish on the steel body.
