B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$331.77

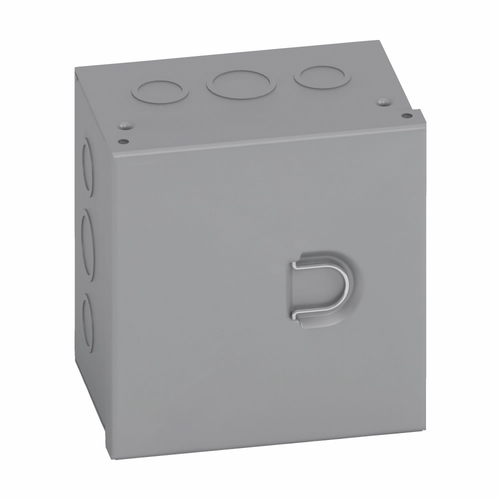

B-Line Eaton series Type 1 junction boxes, 12" height, 4" length, 12" width, 1, Hinged cover, HC enclosure, Surface mounted, Small single door, 5 top

B-Line Eaton series Type 1 junction boxes, 12" height, 4" length, 12" width, 1, Hinged cover, HC enclosure, Surface mounted, Small single door, 5 top

(No reviews yet) Write a Review

Model: 12124 HC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$331.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 12" height, 4" length, 12" width, NEMA 1, Hinged cover, HC enclosure, Surface mounted, Small single door, 5 top-bottom knockouts,5 side knockouts, Thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
5
Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Hinged
Finish Color:
Painted
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
12 in
Product Length Depth:
4 in
Product Weight:
8.5 lb
Product Width:
12 in
Side Knockouts:
5
Special Features:
Removable cover,recessed pull ring&friction dimple
Top Knockouts:
5
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
HC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel
Product Length:
4 in

B-LINE 12124 HC – Frequently Asked Questions

1) Can the Eaton B-Line 12124 HC junction box be used outdoors or in a washdown area?
No. The 12124 HC is a NEMA Type 1 enclosure, which is indoor-use only and rated to keep out falling dirt with no protection against rain, splashing water, or hose-down. For outdoor or wet locations you need a Type 3R, 4, or 4X box instead. It carries a UL 50 listing for enclosure construction.
2) What are the actual box dimensions on the B-Line 12124 HC enclosure?
12 inches high by 12 inches wide with a 4 inch depth, so it needs a 12 x 12 footprint on the wall and clears 4 inches off the surface. Ship weight is 8.5 lb, light enough for one person to hang on a single stud or strut run.
3) Does this 12 x 12 x 4 B-Line box come with knockouts already, or do I have to punch my own conduit holes?
Knockouts are provided: 5 on the top, 5 on the bottom, and 5 on the sides. That lets you bring conduit in from above, below, or either side without pulling out a hole saw or punch on the job. If your run needs an entry where there is no knockout, you can still drill the 16 gauge carbon steel body.
4) Is the cover on the 12124 HC hinged or does it screw on?
Hinged, and it is removable. The door swings open for pulling and terminating without juggling a loose cover, and it lifts off entirely when you need clear access to the back pan. It has a recessed pull ring and a friction dimple to hold it shut.
5) How does this B-Line junction box mount to the wall?
Surface mount, using thru holes in the back of the enclosure. You fasten it directly to the wall, unistrut, or a plywood backer with your own hardware; no flush trim or recessed ring is involved. At 12 x 12 x 4 and 8.5 lb it hangs easily on a strut run.
6) What part number do I order for this B-Line box, and where is it made?
Order it as Eaton B-Line 12124 HC, the small single door hinged cover Type 1 enclosure in 12 x 12 x 4. Country of origin is the US.
7) What color and finish is the 12124 HC, and will it match the other B-Line enclosures in my plant?
It ships painted in ANSI 61 grey, the standard industrial enclosure grey used across most B-Line and Eaton boxes, so it lines up visually with existing gear on the same wall. The body is carbon steel, so keep it in dry indoor locations where the paint is the only corrosion protection it needs.
8) Is 16 gauge steel heavy enough for a junction box carrying conduit on a commercial job?
16 gauge is the usual wall thickness for a mid-size Type 1 steel pull box and it holds threaded conduit hubs and locknuts without deflecting. Combined with the 12 x 12 x 4 carbon steel body and a hinged door, it is built for indoor commercial and light industrial pull and splice duty rather than for impact or corrosive service.
