B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,683.90

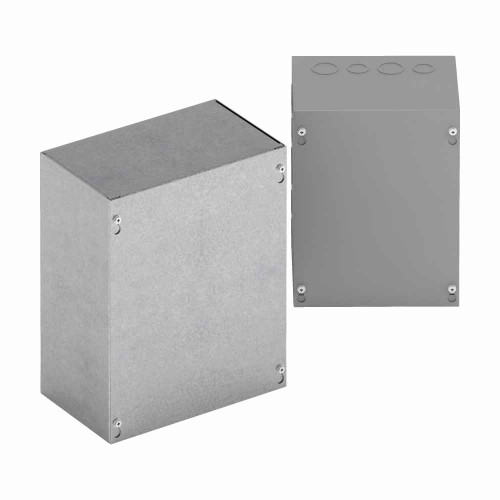

B-Line Eaton series Type 1 junction boxes, 30" height, 6" length, 24" width, 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 k

B-Line Eaton series Type 1 junction boxes, 30" height, 6" length, 24" width, 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 k

(No reviews yet) Write a Review

Model: 30246 SCGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,683.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 30" height, 6" length, 24" width, NEMA 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 knockouts each side,9 top and bottom, Thru holes, Galvanized steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
9
Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
30 in
Product Length Depth:
6 in
Product Weight:
45.6 lb
Product Width:
24 in
Side Knockouts:
9
Special Features:
Keyhole slots on cover, plated screws
Top Knockouts:
9
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
SCGV enclosure
Product Color:
Grey
Product Style:
Medium single door
Product Material:
Galvanized steel

B-LINE 30246 SCGV – Frequently Asked Questions

1) Can the B-Line 30246 SCGV junction box be used outdoors or in a washdown area?
No. The 30246 SCGV is a NEMA Type 1 enclosure, which is indoor use only and offers no protection against rain, dust or hose-down. It is galvanized steel with an unfinished surface, so for wet or outdoor locations you need a Type 3R, 4 or 4X box instead.
2) What are the box dimensions of the B-Line 30246 SCGV screw cover enclosure?
It measures 30 inches high by 24 inches wide with a 6 inch depth, so plan a wall footprint of 30 x 24 and allow 6 inches of projection off the wall plus conduit bend radius in front of the cover. At 45.6 lb it is a two-person lift or one person with the box anchored first.
3) Does this B-Line junction box come with knockouts already punched, or do I have to drill it?
Knockouts are factory provided: 9 on each side, 9 on the top and 9 on the bottom. That covers most multi-conduit pull and splice work without drilling. If you need entries in a location the pattern does not cover, or need them in the back, you will be punching those yourself through 14 gauge steel.
4) How does the B-Line 30246 SCGV mount to the wall?
It is a surface mount enclosure with thru holes in the back pan, so you fasten it directly to the wall or to unistrut with your own bolts or lags. Mounting fasteners and anchors are not part of the box, so pick them for your substrate. It is not a flush or recessed design.
5) Should I choose a screw cover junction box or a hinged door enclosure?
The 30246 SCGV uses a screw-on cover, which is the right call for pull boxes, splice points and terminations you rarely open. Keyhole slots on the cover let you hang it on the plated screws while you start the rest, which matters on a 30 by 24 cover. If a technician needs to open it routinely for adjustment or metering, a hinged-door enclosure will serve better than pulling a dozen screws each time.
6) Is the B-Line 30246 SCGV UL listed for a commercial electrical inspection?
The enclosure is built to UL 50 as a Type 1 box, which is the standard inspectors look for on indoor enclosures. It is also made in the US, which helps on public projects with domestic-content language in the spec.
7) Does the galvanized 30246 SCGV need painting, and what does it look like installed?
No paint is required. The steel is galvanized and shipped unfinished, which reads as a grey metallic surface. Galvanized is the usual pick for back-of-house, mechanical rooms and electrical closets where appearance is not a concern. If the box lands in a finished public space, expect to field paint it or specify a painted enclosure.
8) Is 14 gauge steel heavy enough for a 30 inch junction box carrying conduit runs?
Yes. The 30246 SCGV body is 14 gauge galvanized steel, which is the standard weight for enclosures this size and stiff enough to support multiple threaded conduit entries through the punched knockouts without the wall deflecting. Support the conduit near the box as you normally would rather than letting the box carry the run.
