B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,190.11

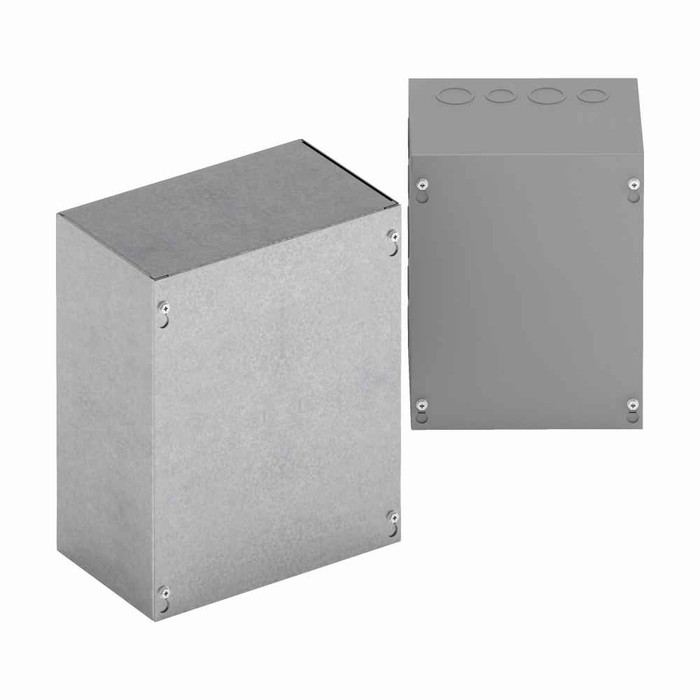

B-Line Eaton series Type 1 junction boxes, 24" height, 6" length, 24" width, 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 k

B-Line Eaton series Type 1 junction boxes, 24" height, 6" length, 24" width, 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 k

(No reviews yet) Write a Review

Model: 24246 SCGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,190.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 24" height, 6" length, 24" width, NEMA 1, Screw cover, SCGV enclosure, Surface mounted, Medium single door, 9 knockouts each side,9 top and bottom, Thru holes, Galvanized steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
9
Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
24 in
Product Length Depth:
6 in
Product Weight:
37.9 lb
Product Width:
24 in
Side Knockouts:
9
Special Features:
Keyhole slots on cover, plated screws
Top Knockouts:
9
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
SCGV enclosure
Product Color:
Grey
Product Style:
Medium single door
Product Material:
Galvanized steel

B-LINE 24246 SCGV – Frequently Asked Questions

1) Can the B-Line 24246 SCGV junction box be used outdoors or in a washdown area?
No. The 24246 SCGV carries a NEMA Type 1 rating, which is indoor use only, for general-purpose protection against incidental contact and falling dirt. It gives you no protection against rain, hose-down, dust or oil. For an outdoor or wet location you need a NEMA 3R or 4 enclosure instead. The listed certification on this box is UL 50.
2) What are the actual box dimensions on the B-Line 24246 SCGV, and how deep is it?
It is 24 inches high by 24 inches wide with a 6 inch depth, so you have a full 6 inches behind the cover for splices, terminal blocks or a wire trough. Figure on 37.9 lb for the box, which is a two-person lift once it is full of conductors.
3) Does this 24x24x6 B-Line junction box come with knockouts, or do I have to punch my own?
Knockouts are already provided: 9 on each side, 9 on top and 9 on the bottom of the 24246 SCGV. That covers most conduit entries without pulling out a punch set, though you can still drill or punch the blank areas if your run does not line up.
4) How does the B-Line 24246 SCGV mount to a wall?
Surface mount, using thru holes in the back of the box. You bolt or lag it flat to the wall or to strut, so at 37.9 lb plan your anchors for the substrate. It is not a flush or recessed box, so the full 6 inch depth projects off the wall face.
5) Is the cover on the B-Line SCGV enclosure hinged or a screw cover?
It is a screw cover, not hinged. The cover lifts off completely, which is what you want for a pull or splice box you open occasionally rather than a panel you service weekly. Plated screws are used, and the cover has keyhole slots so you can back the screws off and lift the cover clear without removing them entirely.
6) What gauge steel is the 24246 SCGV, and will it rust in a damp mechanical room?
The body is 14 gauge galvanized steel. The galvanizing gives reasonable resistance to condensation and humidity in an indoor mechanical or utility room, but it is still a Type 1 indoor enclosure and is not intended for wet locations or direct water exposure.
7) Is the B-Line 24246 SCGV a UL listed enclosure for a spec job?
The enclosure is listed to UL 50, the standard for enclosures for electrical equipment, and carries a NEMA Type 1 rating. It is made in the US, which matters if your project carries domestic sourcing requirements.
8) What is the exact part number to order this 24 x 24 x 6 B-Line screw cover box?
The catalog number is 24246 SCGV from Eaton's B-Line series. The number reads as the dimensions followed by the type: 24 high, 24 wide, 6 deep, screw cover galvanized. It is sold as a single model with no finish or size options.
