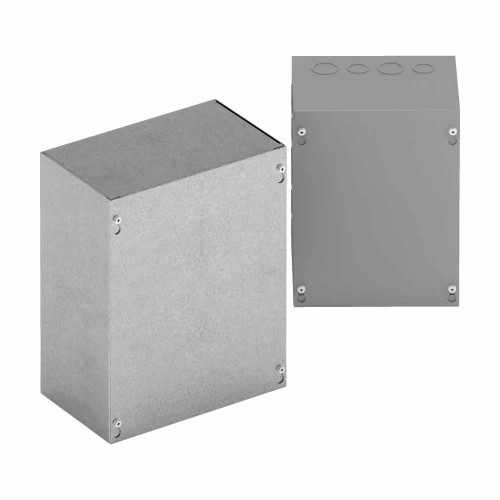

B-Line Eaton series Type 1 jun...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$165.97
$137.30
B-Line Eaton series Type 1 junction boxes, 8" height, 4" length, 6" width, 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 4 knoc

B-Line Eaton series Type 1 junction boxes, 8" height, 4" length, 6" width, 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 4 knoc

(No reviews yet) Write a Review

Model: 864 SCGV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$165.97
$137.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 1 junction boxes, 8" height, 4" length, 6" width, NEMA 1, Screw cover, SCGV enclosure, Surface mounted, Small single door, 4 knockouts each side,3 top and bottom, Thru holes, Galvanized steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
4
Certifications:
UL 50
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Unfinished
Mounting Hole Details:
Thru holes
Mounting Method:
Surface
Nema Rating:
1
Product Height:
8 in
Product Length Depth:
4 in
Product Weight:
3.8 lb
Product Width:
6 in
Side Knockouts:
4
Special Features:
Keyhole slots on cover, plated screws
Top Knockouts:
4
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
SCGV enclosure
Product Color:
Grey
Product Style:
Small single door
Product Material:
Galvanized steel

B-LINE 864 SCGV – Frequently Asked Questions

1) Can the B-Line 864 SCGV junction box be used outdoors or in a wet location?
No. The 864 SCGV is a NEMA Type 1 enclosure, which is indoor use only, for protection against incidental contact with the enclosed equipment and falling dirt. It has no gasket and no rating against rain, washdown, or dust. For an outdoor or damp location you need a Type 3R or Type 4 enclosure instead.
2) What are the actual box dimensions on the B-Line 864 SCGV?
It measures 8 inches high, 6 inches wide and 4 inches deep. The 4 inch depth is the usable wiring depth behind the cover, which matters when you are stacking splices or landing a terminal strip inside.
3) How does the B-Line 864 SCGV mount to a wall?
Surface mount, through holes in the back of the box. You supply the fasteners and anchors to suit the substrate (masonry, stud, or strut). Nothing is included for mounting, and it is not a flush or recessed box.
4) Is this Eaton B-Line junction box UL listed for a commercial inspection?
It is built to UL 50, the standard covering enclosures for electrical equipment. That, with the NEMA Type 1 designation, is what an inspector looks for on an indoor surface-mounted pull or junction box. The box is made in the US.
5) How many conduit knockouts does the 864 SCGV screw cover box have and where are they?
Twelve total: 4 on each side, 4 on the top and 4 on the bottom. That gives you feed-through options on any face without drilling, and the sides are the usual choice when the box is surface mounted tight to a ceiling or floor.
6) Is the cover on the 864 SCGV hinged or screw-on, and can one person get it back on?
It is a screw cover, not hinged. The cover has keyhole slots, so you can back the screws off partway, lift the cover clear, and later hang it back on the loosened screws before tightening. The screws are plated. Where an electrician is opening the box daily for troubleshooting, a hinged-cover enclosure is the easier choice.
7) What gauge steel is the B-Line 864 SCGV and will it rust in a damp basement or parking garage?
The body is 16 gauge galvanized steel, left unfinished (grey mill appearance) rather than painted. Galvanizing gives it reasonable corrosion resistance for indoor mechanical rooms, basements, and back-of-house spaces, but as a Type 1 box it is still not intended for exposed wet or outdoor use.
8) How heavy is this box when I am hanging several off unistrut overhead?
Each 864 SCGV weighs 3.8 lb empty. Light enough to hang from a pair of strut straps or two anchors, but size your fasteners for the conductors and devices going inside as well.
