B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,558.51

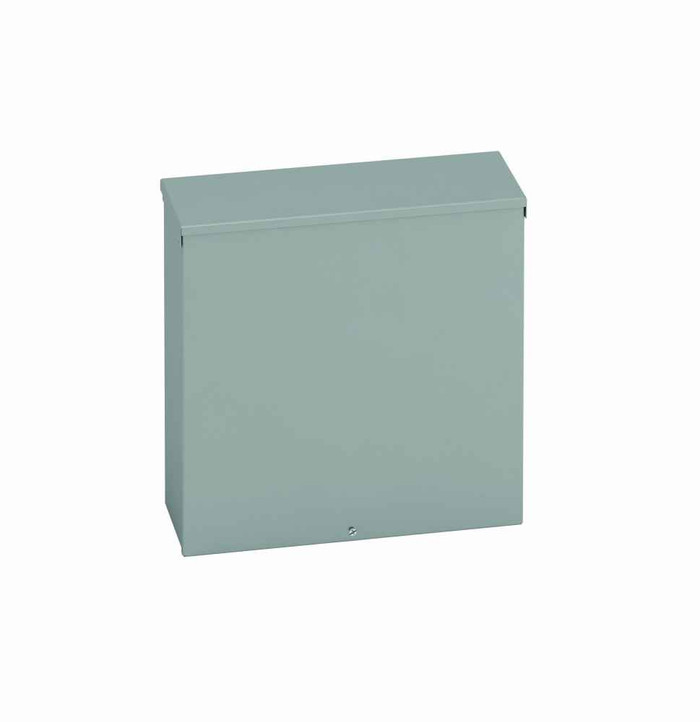

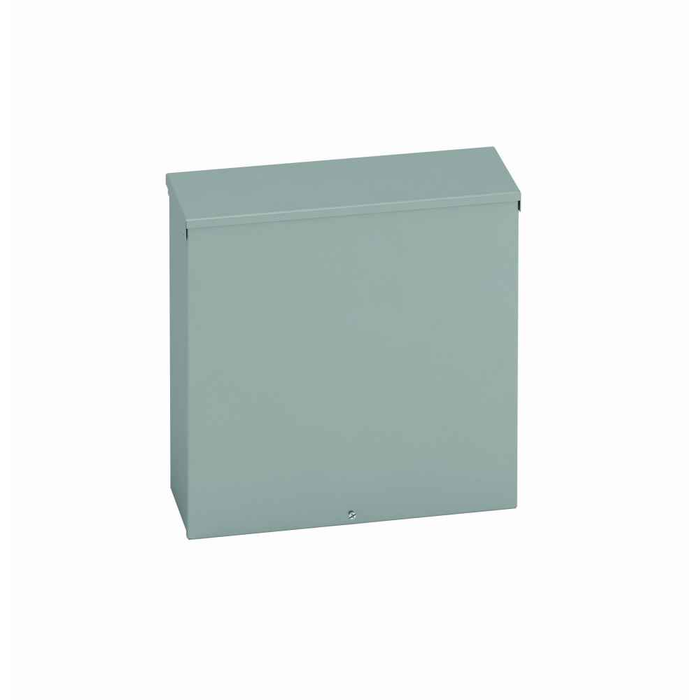

B-Line Eaton series Type 3/3R junction boxes, 24" height, 6" length, 24" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door,

B-Line Eaton series Type 3/3R junction boxes, 24" height, 6" length, 24" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door,

(No reviews yet) Write a Review

Model: 24246 RTSC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,558.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 24" height, 6" length, 24" width, NEMA 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door, 9, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
9
Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
24 in
Product Length Depth:
6 in
Product Weight:
40.9 lb
Product Width:
24 in
Special Features:
Rain hood, plated screws
Wall Thickness:
14 gauge
Department:
Electrical
Product Model:
RTSC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Medium single door
Product Material:
Carbon steel

B-LINE 24246 RTSC – Frequently Asked Questions

1) Can the B-Line 24246 RTSC junction box be mounted outdoors?
Yes. The Eaton B-Line 24246 RTSC enclosure carries a NEMA 3R rating, so it is built for outdoor use against rain, sleet and snow, and it includes a rain hood over the door. It is not a washdown or hosedown rating, so for direct spray or dust-tight service you want a Type 4 or 12 box instead.
2) What are the box dimensions on the 24246 RTSC, and how much wiring depth do I get?
The 24246 RTSC measures 24 in height by 24 in width with a 6 in length/depth, so you have 6 inches behind the cover for conductors, splices and terminal strips. Plan gutter space and bend radius off that 6 inch figure before you commit to large conductors.
3) Does this B-Line enclosure come with conduit knockouts already punched?
There are 9 knockouts in the bottom of the box. The other faces are unpunched, so any side or back entries have to be field-drilled and sealed with a fitting that keeps the 3R rating. Bottom entry is the intended path on an outdoor 3R box anyway.
4) How is this junction box fastened to a wall, and what will it weigh on the structure?
Surface mounting, using embossed thru holes in the back so fasteners pass through without breaking the enclosure's weather integrity at a seam. The box weighs 40.9 lb empty, so anchor into studs, strut or masonry rather than drywall alone, and add for the wiring and devices inside.
5) How does the cover come off on the 24246 RTSC, and does it open like a hinged door?
It is a screw cover, not a hinged door. The flanged cover lifts away once the plated screws are backed out, so allow clearance in front and be ready to hold a 24 x 24 panel while you work. If you need to open the box repeatedly for service, a hinged-door enclosure is the easier choice.
6) What is the 24246 RTSC made of and will it hold up outside?
Carbon steel at 14 gauge, painted in ANSI 61 grey, with plated screws at the cover. That is a heavy-wall steel box for general outdoor and industrial service. In coastal salt air or a corrosive process area, stainless or fiberglass is the better material call.
7) Does the 24246 RTSC include a back panel for mounting components?
The 24246 RTSC is a screw cover junction box for splices and pull points, not a panel-ready enclosure package. No inner mounting panel is called out with it, so if you are landing terminal blocks, relays or a small controller, order a back panel separately sized to the 24 x 24 opening.
8) What exact part number do I order for this 24 x 24 x 6 B-Line 3R screw cover box?
Order Eaton B-Line part number 24246 RTSC. The number reads out of the size: 24 in high, 24 in wide, 6 in deep, RTSC for the rainproof screw cover enclosure.
