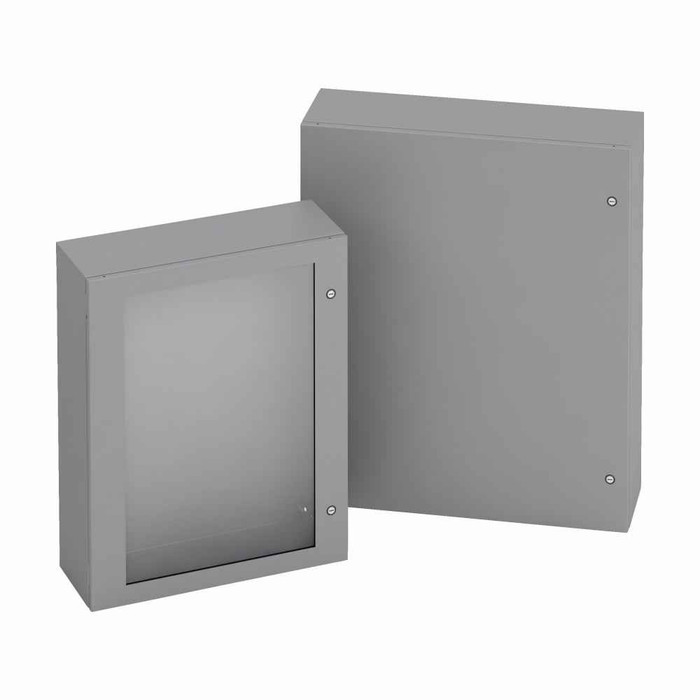

Eaton B-Line series wall mounted panel enclosure
Manufacturer Resources
Product Specs
- Certifications:
- UL 50
- Closure Type:
- Hinged
- Country Of Origin:
- US
- Cover Type:
- Hinged
- Finish Color:
- #4 brushed
- Mounting Hole Details:
- Thru holes, optional external mounting feet
- Nema Rating:
- 4X
- Product Height:
- 30 IN
- Product Length Depth:
- 12 IN
- Product Weight:
- 58 LB
- Product Width:
- 24 IN
- Special Features:
- Stainless 1/4 turn latches
- Wall Thickness:
- 14 gauge, 14 gauge
- Department:
- Electrical
- Product Model:
- SDWSS4 enclosure
- Product Color:
- Grey
- Mounting Method:
- Wall
- Product Style:
- Medium single door
- Product Material:
- 304 stainless steel
B-LINE 302412-SDWSS4 – Frequently Asked Questions
1) What are the enclosure dimensions of the B-Line 302412-SDWSS4?
The 302412-SDWSS4 is a 30 inch high by 24 inch wide by 12 inch deep wall mount enclosure, which is what the 302412 in the part number refers to. Plan your wall space and door swing around the full 30 x 24 face, and allow clearance in front for the 12 inch depth plus the hinged door opening.
2) Is the 302412-SDWSS4 rated for outdoor or washdown use?
It carries a NEMA 4X rating, so it is built for outdoor, hosedown and corrosive areas, not just indoor dry locations. The 304 stainless body is what earns the X, so it suits food processing, water treatment, marine adjacent and chemical environments where painted steel would rust out. It is also UL 50 certified.
3) How is this stainless wall enclosure mounted, and do I need mounting feet?
It mounts to a wall through thru holes in the back of the enclosure. External mounting feet are an option if you need to stand the box off the wall surface, for example on a washdown wall where you want water to drain behind it, but the feet are a separate item and are not part of the enclosure itself. At 58 pounds empty, anchor into structure or unistrut, not hollow wall board.
4) How does the B-Line SDWSS4 enclosure door latch and open?
Single hinged door with stainless 1/4 turn latches. Quarter turn latches mean tool free access for routine checks, which is why they show up on maintenance panels that get opened often, as opposed to a screw cover box you have to unbolt. The hinge is on the door itself, so you are not handling a loose cover in the field.
5) What does the enclosure actually look like finish-wise, will it match other stainless gear?
The exterior is a #4 brushed stainless finish, the standard directional satin grain you see on commercial stainless equipment, so it blends with kitchen, lab and process equipment rather than standing out like a painted grey box. It is not powder coated, so there is no paint to chip or chalk outdoors.
