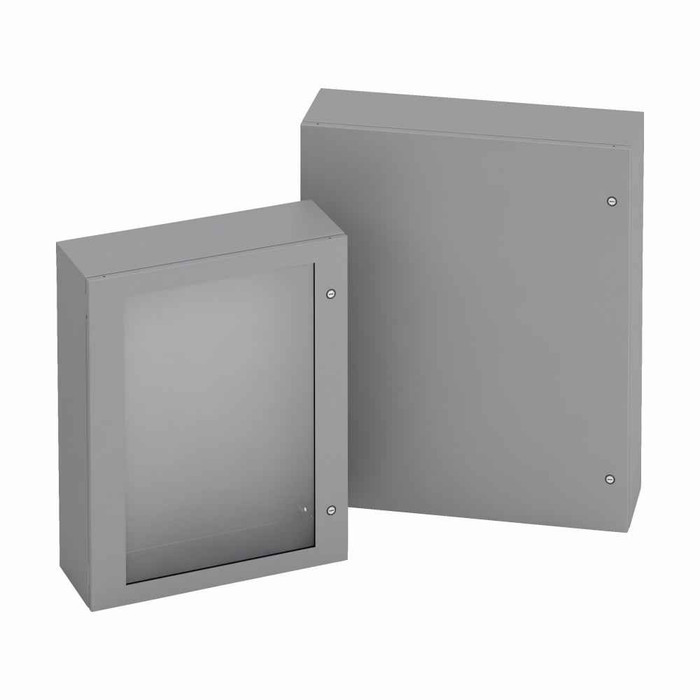

Eaton B-Line series wall mounted panel enclosure
Manufacturer Resources
Product Specs
- Certifications:
- UL 50
- Closure Type:
- Hinged
- Country Of Origin:
- US
- Cover Type:
- Hinged
- Finish Color:
- #4 brushed
- Mounting Hole Details:
- Thru holes, optional external mounting feet
- Nema Rating:
- 4X
- Product Height:
- 48 IN
- Product Length Depth:
- 12 IN
- Product Weight:
- 124.1 LB
- Product Width:
- 36 IN
- Special Features:
- Stainless 1/4 turn latches
- Wall Thickness:
- 14 gauge, 14 gauge
- Department:
- Electrical
- Product Model:
- SDSS4 enclosure
- Product Color:
- Grey
- Mounting Method:
- Wall
- Product Style:
- Medium single door
- Product Material:
- 304 stainless steel
- Product Length:
- 12 in
B-LINE 483612-SDSS4 – Frequently Asked Questions
1) What size is the B-Line 483612-SDSS4 enclosure, and does the model number tell me the dimensions?
The 483612-SDSS4 measures 48 inches high, 36 inches wide and 12 inches deep, which is exactly what the first six digits of the part number spell out (48 x 36 x 12). Plan your wall space and conduit entries around that 12 inch depth before you order.
2) Can this stainless enclosure be used in a washdown or outdoor location?
Yes. The 483612-SDSS4 carries a NEMA 4X rating, which covers outdoor use, hosedown and corrosion resistance. The 304 stainless steel body and stainless 1/4 turn latches are what earn the X, so it suits food processing, wastewater and coastal exterior work.
3) How heavy is this 48x36x12 stainless enclosure and does it need two people to hang?
It weighs 124.1 lb empty, in 14 gauge stainless. That is a two-person lift at minimum, and the wall it lands on needs to carry that plus whatever gear you mount inside. Get the fasteners into structure, not just sheathing.
4) How does the B-Line SDSS4 enclosure mount to the wall?
It is a wall mount box with thru holes in the back pan. External mounting feet are available as an option if you need the enclosure held off the wall for drainage or washdown clearance, but they are a separate item, not part of the box.
5) Does the door open on hinges or is it a bolt-on cover?
Hinged. The SDSS4 is a medium single door enclosure with a hinged cover and stainless 1/4 turn latches, so a tech can open it without tools and without wrestling a loose cover off a live panel.
6) Is a back panel included with the 483612-SDSS4?
The SDSS4 designation covers the stainless enclosure body and hinged door. Back panels and mounting feet are ordered separately, so size your subpanel and hardware for a 48 x 36 opening when you spec the job.
7) What certification does this Eaton B-Line enclosure carry for an inspector?
UL 50 is the listing on record for the 483612-SDSS4, the standard covering enclosures for electrical equipment. Pair that with the NEMA 4X type rating when you submit it.
8) What does the stainless finish look like, and will it match other enclosures in the room?
It is a #4 brushed finish on 304 stainless, the standard directional satin grain you see on food plant and lab equipment. If your existing boxes are painted grey steel, this will not match visually, but it will stand up to corrosion they will not.
9) Is 14 gauge heavy enough for a large panel enclosure?
Both the body and door are 14 gauge stainless on this one, which is the usual construction for a box this size and keeps a 48 inch door from flexing when it swings. It is also why the empty weight lands at 124.1 lb.
10) Where is the B-Line 483612-SDSS4 made?
Country of origin on the 483612-SDSS4 is the US, which matters on government and institutional jobs carrying domestic sourcing language.
