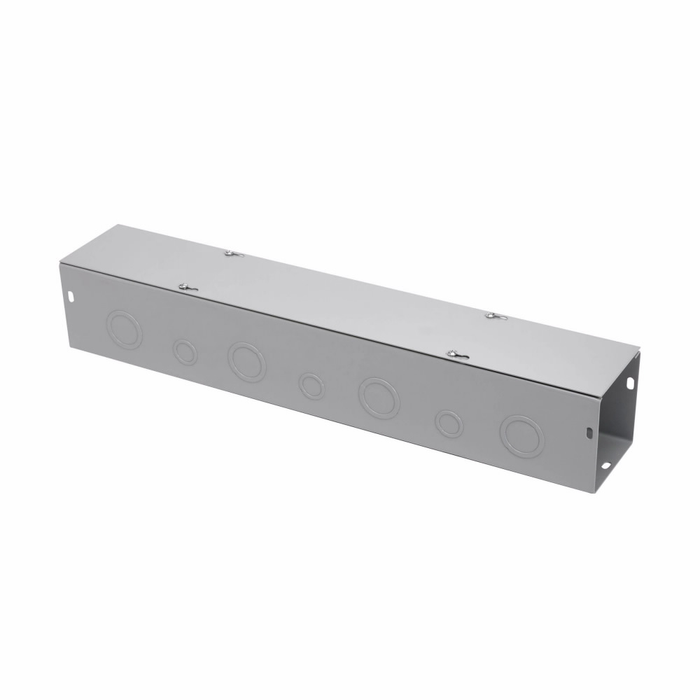

B-Line Eaton series wireway, 10" height, 48" length, 10" width, G wireway, Thru holes, 15 top knockouts, 15 bottom knockouts, Screw cover, 1, Steel,

No. The 101048 G is a NEMA 1 enclosure, which is general purpose indoor only. It gives protection against incidental contact and falling dirt, not rain, washdown, or dust. For an outdoor run or a wet process area you need a NEMA 3R or NEMA 4 raintight/watertight wireway instead. The 101048 G is also CSA Certified.

Yes, 15 knockouts on the top and 15 on the bottom, so you can land conduit along the run without drilling. The sides are thru-hole mounting only, so plan feeds and branch drops off the top and bottom faces.

The cover is a full-length screw cover held by plated screws, so you back the screws out and lift the cover off the whole 48 inch run. That gives open access the length of the section for pulling and laying in conductors, but it does mean a screwdriver and loose hardware every time you open it. If you expect frequent access, a hinged cover version is the easier choice.

Yes. A 101048 G is a straight 48 inch trough only. Any change of direction needs a separate elbow or tee fitting, the ends of a run need end plates or closing plates, and joints between sections need the appropriate connector hardware. Wall or strut fasteners are also supplied by the installer since the body mounts through holes.

14 gauge steel, finished in ANSI 61 gray, which is the standard gray used on switchgear and panelboards so a run matches the rest of the lineup in an electrical room.
