B-Line Eaton series wireway, 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,645.38

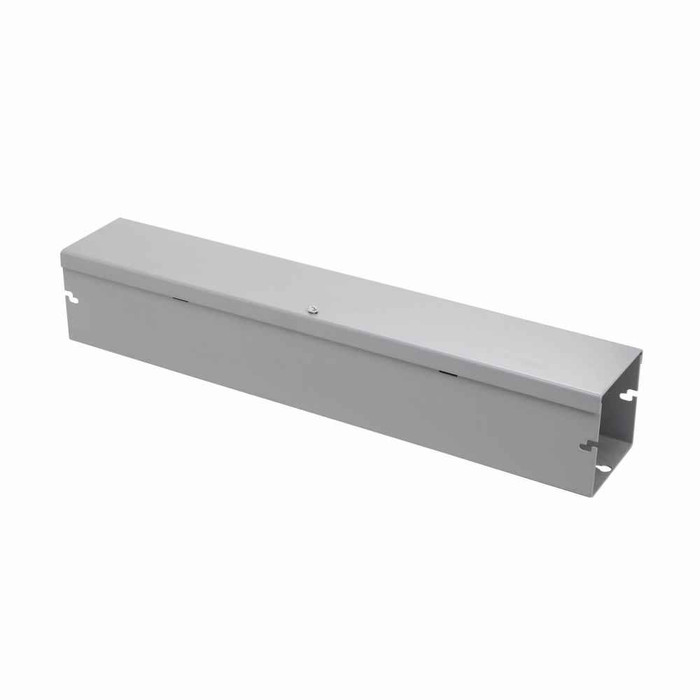

B-Line Eaton series wireway, 10" height, 48" length, 10" width, HS wireway, Thru holes, 15 top knockouts, 15 bottom knockouts, Hinged cover, 1, Steel

B-Line Eaton series wireway, 10" height, 48" length, 10" width, HS wireway, Thru holes, 15 top knockouts, 15 bottom knockouts, Hinged cover, 1, Steel

(No reviews yet) Write a Review

Model: 101048 HS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,645.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 10" height, 48" length, 10" width, HS wireway, Thru holes, 15 top knockouts, 15 bottom knockouts, Hinged cover, NEMA 1, Steel, Hinged, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
10 in
Product Length Depth:
48 in
Product Weight:
34.714 lb
Product Width:
10 in
Special Features:
Cover is secured to the body with plated screws
Department:
Electrical
Product Type:
HS wireway
Product Details:
HS wireway

B-LINE 101048 HS – Frequently Asked Questions

1) Is the B-Line 101048 HS wireway rated for outdoor or wet locations?
No. The 101048 HS is a NEMA 1 enclosure, which is indoor general purpose only, with no gasketing against rain, dust, or washdown. Put it in a dry mechanical room, electrical room, or interior plant wall. For an outdoor run or anywhere subject to water, you need a NEMA 3R raintight wireway instead.
2) What are the actual cross-section dimensions of this B-Line wireway, and will 10 x 10 handle my conductor fill?
The trough is 10 inches high by 10 inches wide, in a 48 inch length, giving a 100 square inch cross section. Wireway fill is limited to 20 percent of the cross-sectional area under the NEC, so that works out to 20 square inches of conductor. Size your fill off the conductor areas in your code tables before you commit to the 10 x 10.
3) Does this wireway have a hinged cover or a screw-on cover?
Hinged. The cover swings open on the 101048 HS, so an electrician pulling wire through a long run does not have to handle and re-set a loose panel on a ladder. The cover is secured to the body with plated screws, so it still closes down tight once the pull is done.
4) How many knockouts does this 48 inch wireway have and where are they?
There are 15 knockouts on the top and 15 on the bottom of the 48 inch section, so you can drop conduit out the bottom and feed in from the top without drilling the trough in the field. There are no side knockouts called out, so if your conduit has to enter from the side you will be making your own openings.
5) What gauge steel is this Eaton B-Line wireway, and what is the finish?
14 gauge steel, painted ANSI 61 gray. That is the standard gray used across commercial electrical gear, so a run of this wireway will match adjacent panelboards, disconnects, and control cabinets in the same room. The heavier 14 gauge body matters on long horizontal runs where a thinner trough oil-cans between supports.
6) Is this wireway CSA certified for a Canadian job?
The 101048 HS carries CSA C22.2 certification, which is what an inspector north of the border will be looking for on an enclosure of this type. Useful if you are buying one part number for work on both sides of the line.
