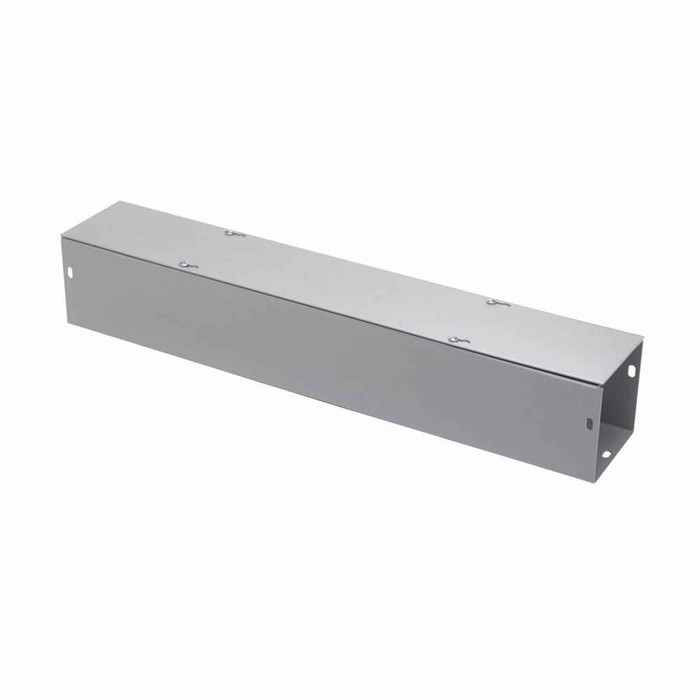

B-Line Eaton series wireway, 10" height, 72" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61

B-Line Eaton series wireway, 10" height, 72" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61

(No reviews yet) Write a Review

Model: 101072 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,010.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 10" height, 72" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
10 in
Product Length Depth:
72 in
Product Weight:
50.38 lb
Product Width:
10 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 101072 G NK – Frequently Asked Questions

1) Is the B-Line 101072 G NK wireway rated for outdoor or wet locations?
No. The 101072 G NK is a NEMA 1 wireway, which is general purpose indoor only. It gives protection against incidental contact and falling dirt, but it is not sealed against water, washdown, or weather. For an outdoor run, a rain-tight enclosure type is required instead.
2) Does the B-Line G NK wireway come with knockouts for conduit?
No knockouts. The NK in the model designation means the trough is supplied blank, so every conduit entry gets field drilled or punched exactly where the run needs it. If you want factory knockouts on the sides, you need a knockout version of the trough rather than this one.
3) How does the cover come off on the 101072 wireway, screw cover or hinged?
Screw cover. The cover is secured with plated screws along its length, which means you take the full cover off to pull or land wire rather than swinging it open. On a ceiling run or above equipment, plan for someone to support the cover while the screws come out. Hinged cover troughs are the alternative if the box gets opened often.
4) What gauge steel is the B-Line 101072 wireway and what color is it painted?
14 gauge steel, finished in ANSI 61 gray. That is the standard gray used on most industrial panelboards, control enclosures, and switchgear, so a run of this trough matches existing equipment in a plant or mechanical room without a repaint.
5) Is the B-Line 101072 G NK wireway approved for use on a job in Canada?
It is CSA Certified, so it satisfies the listing requirement inspectors look for on Canadian work. Keep the NEMA 1 indoor limitation in mind, since certification does not extend the enclosure type to damp or outdoor locations.
6) Do I need anything else besides the trough to complete a wireway run?
Yes. Each 72 inch section is a straight length of trough with its cover. Connectors to join section to section, elbows or tees where the run turns, end plates to close the run, and the mounting hardware for the through holes all come separately. Order those alongside the straight lengths so the run can be closed out the same day.
