B-Line Eaton series wireway, 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$357.91

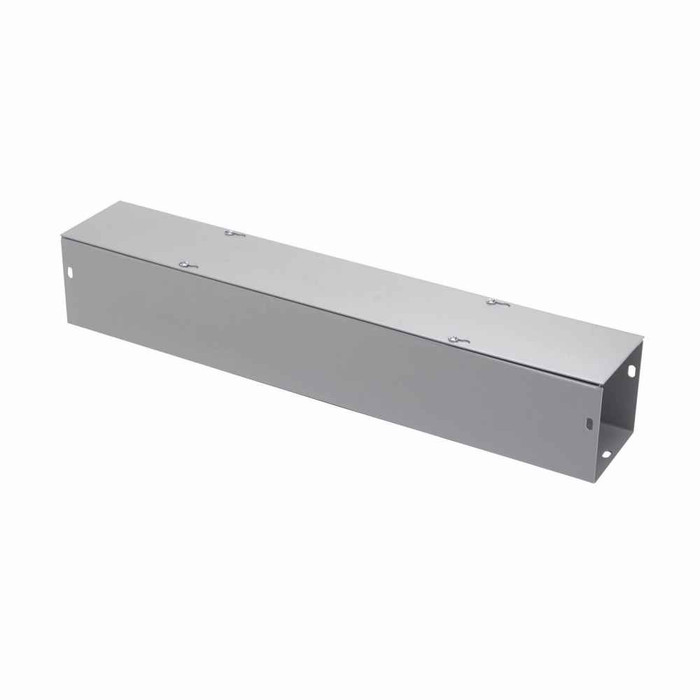

B-Line Eaton series wireway, 2.5" height, 60" length, 2.5" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated

B-Line Eaton series wireway, 2.5" height, 60" length, 2.5" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, 1, Galvanized steel, Plated

(No reviews yet) Write a Review

Model: 2260 GGV NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$357.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 2.5" height, 60" length, 2.5" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
Gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
2.5 in
Product Length Depth:
60 in
Product Weight:
10.686 lb
Product Width:
2.5 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
GGV NK wireway
Product Details:
GGV NK wireway

B-LINE 2260 GGV NK – Frequently Asked Questions

1) Is this B-Line wireway NEMA 1 or rated for wet/outdoor locations?
NEMA 1 only. The 2260 GGV NK is a screw cover, general purpose indoor enclosure with no gasket, so keep it out of wet, damp, or washdown areas. For outdoor or wet locations you need a NEMA 3R raintight wireway instead.
2) Does the 2260 GGV NK wireway come with knockouts for conduit?
No knockouts. The NK in the part number means it ships blank, so every conduit entry is a hole you punch in the field where you want it. That's the right choice when your conduit layout does not line up with factory knockout patterns; if you'd rather have them prepunched, order a knockout version of the same trough size.
3) Do I need fittings and couplings to join two lengths of this wireway?
Yes. A 60 inch length of 2260 GGV NK is the trough and its screw cover only. Connectors, elbows, tees, end plates, and hangers are separate items and have to be ordered to match the same 2-1/2 by 2-1/2 inch size, so count your corners and terminations before you place the order.
4) How does this wireway mount to a wall or strut?
Through holes in the body. The 2260 GGV NK is mounted with fasteners run through the trough wall, so you provide the anchors, strut, or hangers to suit the surface. Nothing for mounting is furnished with the length.
5) Is the cover removable for pulling wire, or is it hinged?
Screw cover, not hinged. The full-length cover is held on with plated screws and lifts off completely, which gives you the whole side open for laying in conductors. If you're opening the trough frequently for service, a hinged cover wireway is easier to live with.
6) Is this wireway CSA certified for a Canadian job?
Yes, the 2260 GGV NK carries CSA Certification, so it can be specified on work requiring CSA certified electrical enclosures.
7) What gauge steel and finish is the B-Line 2260 wireway?
16 gauge galvanized steel, finished gray with plated screws. The galvanized base plus paint is standard for indoor electrical rooms and mechanical spaces, and the gray matches typical panel and gutter finishes if you're extending an existing run.
