B-Line Eaton series wireway, 6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$235.73
$220.51

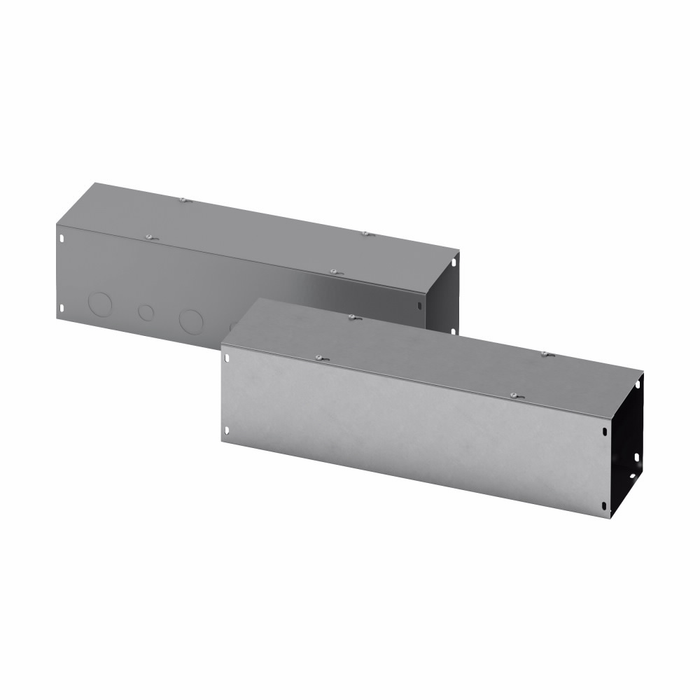

B-Line Eaton series wireway, 6" height, 12" length, 4" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

B-Line Eaton series wireway, 6" height, 12" length, 4" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws, ANSI 61 g

(No reviews yet) Write a Review

Model: 6412 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$235.73
$220.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 6" height, 12" length, 4" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
16 gauge
Mounting Method:
Thru holes
Product Height:
6 in
Product Length Depth:
12 in
Product Weight:
4.063 lb
Product Width:
4 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 6412 G NK – Frequently Asked Questions

1) Is the Eaton B-Line 6412 G NK wireway rated for outdoor or wet locations?
No. The 6412 G NK is a NEMA 1 enclosure, which is general purpose indoor only. Keep it inside dry, protected spaces such as electrical rooms, mechanical rooms, and finished interiors. For a damp basement wall, a washdown area, or anything exposed to weather you need a rainproof or watertight wireway instead, not this one.
2) Does this Eaton B-Line wireway come with knockouts for conduit?
No. The 6412 G NK is the NK (no knockouts) version, so every side comes blank. You punch or hole saw your own openings exactly where the conduit lands, which is why installers pick NK for custom layouts. If you want factory openings on a set pattern, order a knockout version instead.
3) What size is the B-Line 6412 G NK wireway and how long a run does one section cover?
One section is listed at 6 in height, 12 in length, and 4 in width, so a single piece covers a foot of run. Longer runs are built by coupling multiple sections end to end. It weighs 4.063 lb, so a single hand can hold it in place while you start the mounting screws.
4) How does the cover come off on the B-Line 6412 G NK, and how is the body mounted?
It is a screw cover held by plated screws, so you back the screws out to open the trough rather than hinging or latching it. Mounting is through holes in the body, meaning you fasten it straight to the wall, strut, or backpan with your own hardware. Plan for screwdriver clearance above the cover if the run sits tight under a ceiling or beside a panel.
5) What gauge steel is this wireway and is it approved for Canadian jobs?
Body and cover are steel at 16 gauge, and the 6412 G NK is CSA Certified, so it can be specified on Canadian work as well as US installs. The 16 gauge steel is what keeps a 12 inch section rigid enough to support itself between mounting points on a wall run.
6) What exact part number do I order for the Eaton B-Line 4 inch screw cover wireway with no knockouts?
Order Eaton B-Line part number 6412 G NK. That designation covers the NEMA 1 steel wireway with the screw cover, thru hole mounting, no knockouts, and the ANSI 61 gray finish. Fittings, couplings, and elbows are separate items and need to be ordered alongside it to complete a run.
7) Will the gray finish on the B-Line 6412 wireway match my existing panelboards and gutter?
The finish is ANSI 61 gray, the standard gray used across most commercial electrical gear, so it lines up visually with typical panelboards, enclosures, and adjoining wireway runs finished to the same spec. If your facility standardized on ANSI 61, this drops into the run without a color mismatch.
