B-Line Eaton series wireway, 6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$472.57

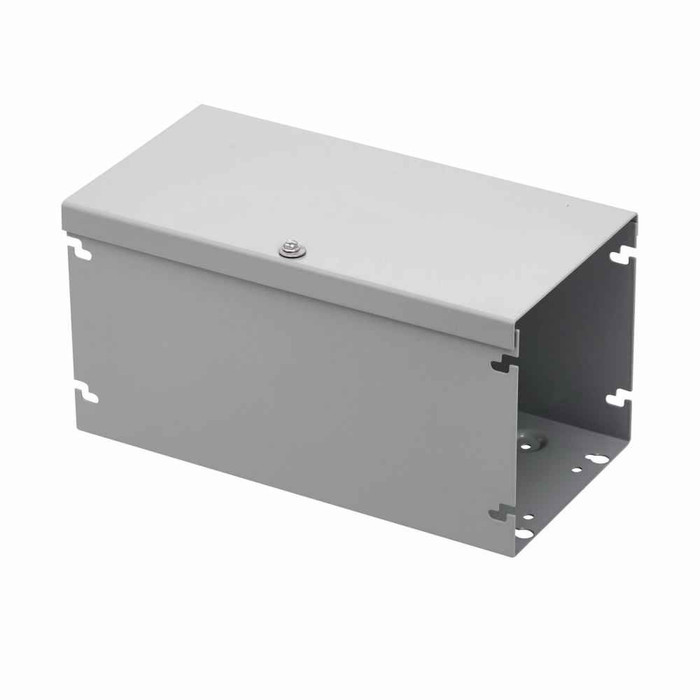

B-Line Eaton series wireway, 6" height, 12" length, 6" width, 3RAHS NK wireway, Embossed thru holes, No knockouts, Hinged cover, 1, Aluminum, Hinged,

B-Line Eaton series wireway, 6" height, 12" length, 6" width, 3RAHS NK wireway, Embossed thru holes, No knockouts, Hinged cover, 1, Aluminum, Hinged,

(No reviews yet) Write a Review

Model: 6612-3RAHS NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$472.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 6" height, 12" length, 6" width, 3RAHS NK wireway, Embossed thru holes, No knockouts, Hinged cover, NEMA 1, Aluminum, Hinged, ANSI 61 gray, 0.08 inch

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Mounting Method:
Embossed thru holes
Product Height:
6 in
Product Length Depth:
12 in
Product Weight:
2.392 lb
Product Width:
6 in
Special Features:
Cover securedto bodyw/gasketedretaining s.s. screw
Department:
Electrical
Product Type:
3RAHS NK wireway
Product Details:
3RAHS NK wireway

B-LINE 6612-3RAHS NK – Frequently Asked Questions

1) What size is the Eaton B-Line 6612-3RAHS NK wireway section?
It's a 6 x 6 inch cross section, 12 inches long. That's a short filler or pull section rather than a full run length, so for longer runs you order additional sections and couple them together. The piece weighs 2.392 lb, light enough for one person to hold up while fastening.
2) Is this B-Line wireway rated for outdoor or wet locations?
No. The 6612-3RAHS NK is a NEMA 1 enclosure, which is indoor, general purpose only. It keeps fingers and falling dirt out, not rain or washdown. For an outdoor run you need a NEMA 3R raintight wireway instead.
3) Does this wireway come with knockouts already punched?
No knockouts. The 6612-3RAHS NK ships as a blank body, so every conduit entry is drilled or punched in the field wherever your raceway lands. That is the reason to pick it over a knockout version when your conduit spacing does not match a standard pattern.
4) How does the cover open on this B-Line wireway, and can I get into it after it's mounted?
Hinged cover. It swings open in place, so you can pull or land conductors without taking a loose cover off a mounted section. The cover is secured to the body with a gasketed stainless steel retaining screw, so you back out one screw and the cover stays captive to the section.
5) How do you mount a 6612-3RAHS NK wireway to a wall or strut?
Through embossed thru holes in the back of the body. The embossing lets you bolt straight to a wall, strut, or backpan without adding external brackets, and the raised holes keep the fastener heads from bearing on flat sheet. Fasteners are field supplied to suit the substrate.
6) Is this wireway aluminum or painted steel, and will it match my other gear?
The body is aluminum, finished ANSI 61 gray. ANSI 61 is the standard gray used on most industrial panelboards, control enclosures, and switchgear, so a run of these blends with existing equipment on the same wall. Aluminum also keeps the weight down, at 2.392 lb for this 12 inch section.
7) Is this Eaton B-Line wireway approved for use in Canada?
It is certified to CSA C22.2, the Canadian standard series for electrical enclosures and raceways, so it is acceptable for Canadian installations as well as US work.
8) I need a 12 inch pull section between two runs of 6x6 wireway. Will this work?
Yes, that is exactly what a 12 inch 6 x 6 section is for. Matching the 6 inch height and 6 inch width of your existing run, it couples in as a short pull or transition piece, and the hinged cover means you can reopen the pull point later without disturbing the run.
9) What gauge material is this B-Line wireway made from?
0.08 inch aluminum. That thickness is what gives the 6 x 6 body its rigidity over a 12 inch span without the weight of a steel section.
