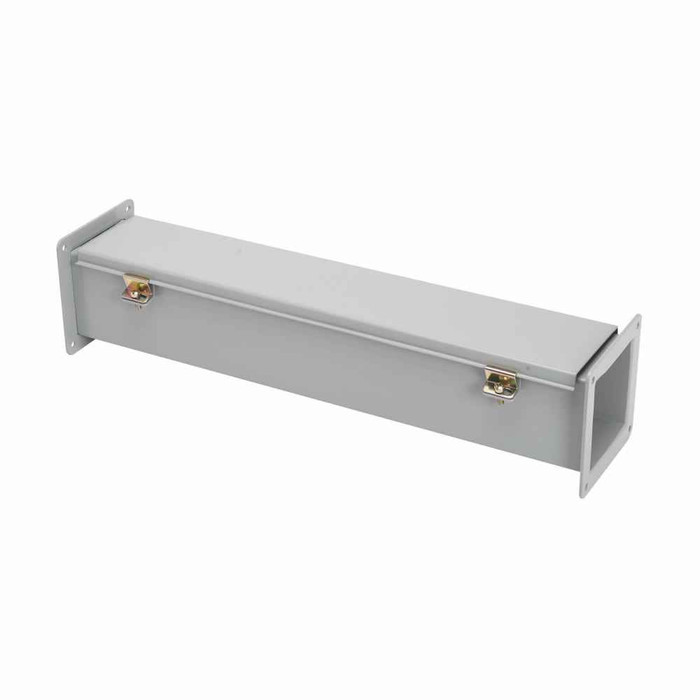

B-Line Eaton series wireway, 8" height, 60" length, 8" width, 12FW wireway, Wireway hanger, Hinged cover, 12, Steel, Seamless poured in-place, Hinged

Model 8860-12FW is a NEMA 12 wireway, so it's built for indoor use where dust, falling dirt and dripping non-corrosive liquids are the concern. The seal is a seamless poured-in-place gasket, and the hinged cover clamps down onto it with screw clamps. NEMA 12 is not a washdown or outdoor rating, so if the run is exposed to rain, hose-down or direct spray you need a NEMA 3R or 4 wireway instead.

It's an 8 x 8 inch trough, 60 inches long, in 14 gauge steel. Weight is 45.52 lb per section, which matters if you're hanging a long run, since these are supported by wireway hangers rather than being self-supporting off the enclosure. The 8 x 8 section is the size people reach for when a 4 x 4 trough is out of conduit fill room for a large pull.

Hinged is the right call anywhere you'll be back in the trough repeatedly, pulling or re-landing conductors at a panel, since the cover swings out of the way instead of coming off and leaving you holding a 60 inch lid and a handful of screws. The 8860-12FW uses heavy-duty hinges plus screw clamps, so it still seals to NEMA 12 when closed. Pick a screw cover version instead only where the trough is buried above ceiling and never reopened, or where you want to discourage access.

The 8860-12FW is certified to CSA C22.2, so it satisfies the third-party certification requirement for wireway under the Canadian Electrical Code. That's the certification held on record for this model.

Yes. The 8860-12FW is a straight 60 inch trough section only. A full run also needs the hardware that joins and supports it, plus any elbows, tees, end plates or nipples the layout calls for. Mounting is by wireway hanger, so plan the support points before ordering, each section weighs 45.52 lb.

Order Eaton B-Line 8860-12FW. The number reads as the section size and type: 8 x 8 inch trough, 60 inch length, NEMA 12 hinged cover. It's a single configuration, no finish or size options to specify.

Steel finished in ANSI 61 gray, the standard gray used across most industrial enclosures, panelboards and trough, so it lines up visually with existing B-Line wireway and typical switchgear in a plant. Only one finish is offered on model 8860-12FW.
