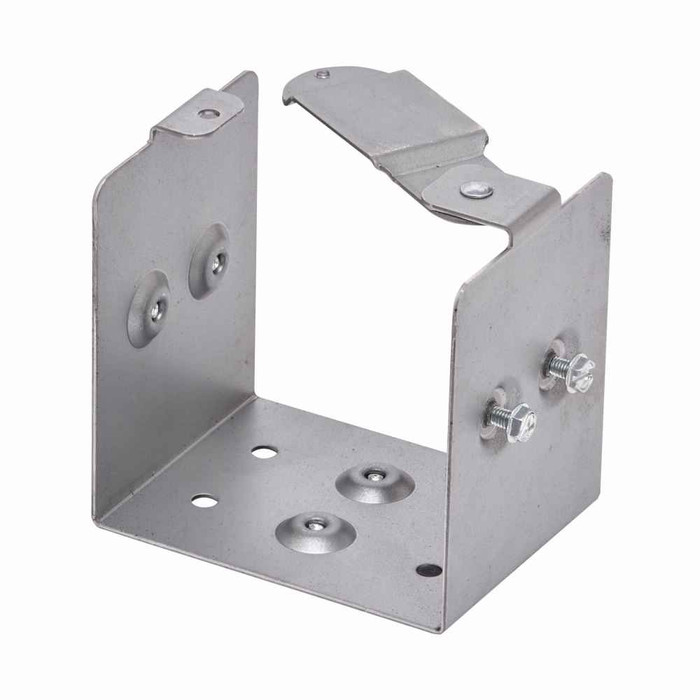

Eaton B-Line series wireway connector, Connector style, Wireway connector, NEMA 1, Galvanized steel, 10" X 10"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Product Height:
- 10 in
- Product Length Depth:
- 10 in
- Product Weight:
- 1.753 lb
- Product Width:
- 10 in
- Wiring Method:
- Connector style
- Department:
- Electrical
- Product Type:
- Wireway connector
- Product Details:
- Wireway connector
- Product Material:
- Galvanized steel
B-LINE 1010 HSC – Frequently Asked Questions
1) Will the B-Line 1010 HSC connector fit 10 x 10 wireway?
Yes. The Eaton B-Line 1010 HSC is sized for 10 inch by 10 inch wireway, matching a 10 in height and 10 in width cross section. It joins two straight sections of that size in line. If your trough is 4x4, 6x6, or 8x8, you need the connector built for that cross section instead.
2) Is this wireway connector rated for outdoor or wet locations?
No. The 1010 HSC carries a NEMA 1 degree of protection, which is indoor, general purpose only, with no rain or washdown rating. For exterior runs or damp areas you need a NEMA 3R raintight wireway and matching 3R fittings.
3) What is the 1010 HSC actually for, a splice between wireway sections or a gutter cover?
It's a wireway connector, the fitting that joins sections of trough together at a straight butt joint. It is not a cover, an end plate, or an elbow. Wiring method is connector style, so sections land into the connector rather than being bolted flange to flange.
4) How many wireway connectors do I need for a run of 10 x 10 trough?
One connector per joint, so a run of four sections needs three. Order the 1010 HSC only where 10 x 10 sections meet end to end in a straight line; corners, tees, and terminations use their own NEMA 1 fittings rather than this connector.
5) How heavy is a single 10 x 10 wireway connector for shipping and hanging estimates?
Each 1010 HSC weighs 1.753 lb. Light enough that it adds nothing meaningful to a trapeze or strut support calculation, but worth counting if you're ordering connectors by the dozen for a long overhead run.
