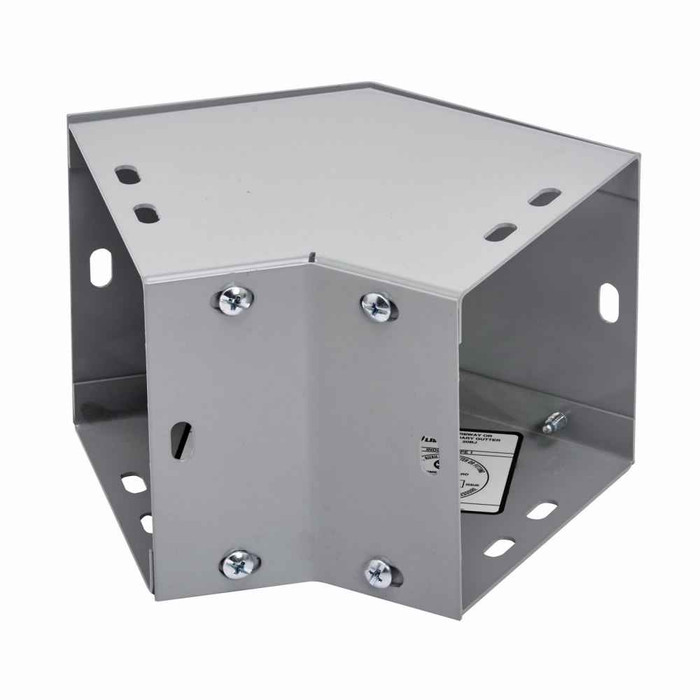

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, combo opening, NEMA 1, Galvanized steel, ANSI 61 gray acrylic electrocoat finish, 8" X 8"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray acrylic electrocoat finish
- Product Height:
- 8 in
- Product Length Depth:
- 8 in
- Product Weight:
- 4.16 lb
- Product Width:
- 8 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, combo opening
- Product Details:
- 90° elbow, combo opening
- Product Material:
- Galvanized steel
- Product Length:
- 8 in
B-LINE 8845 L COMBOGV – Frequently Asked Questions
1) Will the B-Line 8845 L COMBOGV elbow fit 8 x 8 wireway?
Yes. The 8845 L COMBOGV is sized for 8 inch by 8 inch lay-in wireway, with 8 in height, 8 in width and 8 in length/depth. It is a 90 degree elbow, so it turns a run of 8 x 8 trough through a right angle. It will not adapt between two different trough sizes.
2) Is this elbow rated for outdoor or wet locations?
No. It is NEMA 1 degree of protection, which is indoor, general purpose only. For a rooftop, exterior wall, or washdown area you need a NEMA 3R or 4 rated raintight wireway and matching elbow instead.
3) What does "combo opening" mean on this wireway elbow?
A combo opening elbow can be oriented either way at the corner, so one fitting covers the turn regardless of which direction your trough run has to break. That means an electrician stocking 8 x 8 lay-in wireway only needs the one elbow number instead of separate left and right parts.
4) Is this a lay-in wireway elbow or a feed-through type?
Lay-in. The cover comes off so conductors drop straight into the elbow rather than being pulled through it, which is what you want when you are laying in a bundle at a corner and do not want to fish the turn.
5) What finish does this elbow come in, and will it match existing gray wireway?
Galvanized steel with an ANSI 61 gray acrylic electrocoat finish. ANSI 61 gray is the standard gray used across most industrial enclosures and wireway, so it matches typical existing gray trough runs and panel gear.
6) How heavy is this 8 x 8 wireway elbow for overhead mounting?
About 4.16 lb. Light enough for one person to hold at a corner while landing the connection, but it still needs support on both legs of the trough run per the wireway's own support requirements.
