B-Line Eaton series wireway elbow fitting, Lay-in, 90° elbow, combo opening, 1 rated, Steel, ANSI 61 gray painted finish, 2.5" X 2.5"
Model: BLN-2245 HSL COMBO

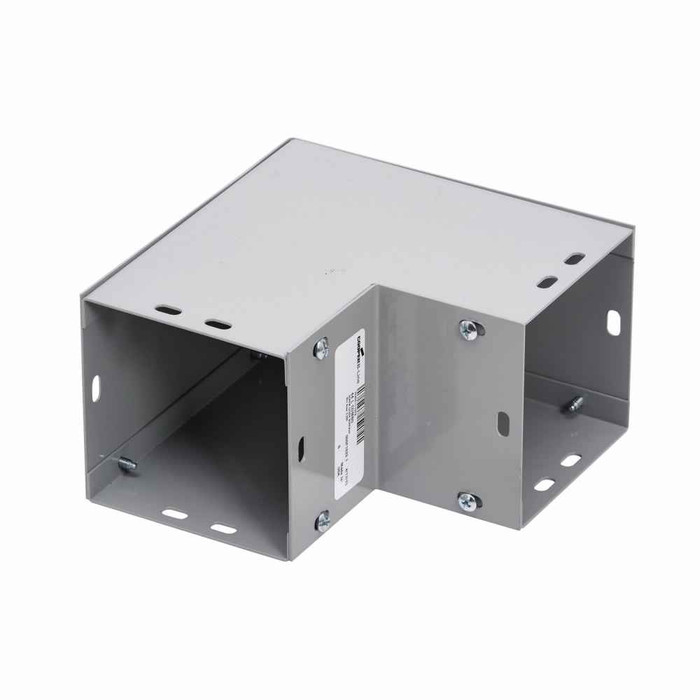

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, combo opening, NEMA 1 rated, Steel, ANSI 61 gray painted finish, 2.5" X 2.5"
B-LINE
$292.53
$288.36
Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, combo opening, NEMA 1 rated, Steel, ANSI 61 gray painted, 2.5" X 2.5"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 2.5 in
- Product Length Depth:
- 5.59 in
- Product Weight:
- 1.686 lb
- Product Width:
- 2.5 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, combo opening
- Product Details:
- 90° elbow, combo opening
- Product Material:
- Steel
B-LINE 22 L COMBO – Frequently Asked Questions
1) Will the B-Line 22 L COMBO elbow fit 2-1/2 inch square wireway?
Yes. The Eaton B-Line 22 L COMBO elbow is sized 2.5 in by 2.5 in, so it mates to 2-1/2 x 2-1/2 lay-in wireway. It will not work on 4x4 or 6x6 trough; those need an elbow matched to that cross section.
2) Is this wireway elbow rated for outdoor or wet locations?
No. The 22 L COMBO elbow is a NEMA Type 1 enclosure rating, which is indoor, dry location only, for protection against incidental contact and falling dirt. For outdoor, washdown, or damp areas you need a Type 3R or Type 4 gasketed wireway fitting instead.
3) What does "combo opening" mean on this 90 degree wireway elbow?
The combo opening means the elbow can be turned to serve either direction of the 90, so one part covers the common right-angle transitions instead of stocking separate left and right elbows. It's a 90 degree lay-in elbow, so the cover comes off and conductors drop straight into the channel rather than being pulled through.
4) Is the B-Line 22 L COMBO elbow UL Listed for an inspected job?
It is UL Listed. That matters on commercial and institutional work where the inspector wants the whole wireway run, fittings included, to be listed components rather than a mix of listed trough and unlisted fittings.
5) How much room do I need to allow for this 90 degree wireway elbow in my layout?
Allow for a 5.59 in length/depth on the fitting, with a 2.5 in by 2.5 in cross section. Weight is 1.686 lb, light enough that a single strut or wall clip either side of the turn carries it.
6) Do I order this elbow by part number 22 L COMBO?
Yes, the Eaton B-Line manufacturer part number is 22 L COMBO. The leading 22 identifies the 2-1/2 by 2-1/2 inch wireway size, L is lay-in, COMBO is the combination opening.
7) What finish does this B-Line wireway elbow come in, and will it match my existing trough?
Painted steel in ANSI 61 gray, the standard gray used across Eaton B-Line wireway and most industrial enclosures, so it matches typical existing lay-in trough runs on the wall.
