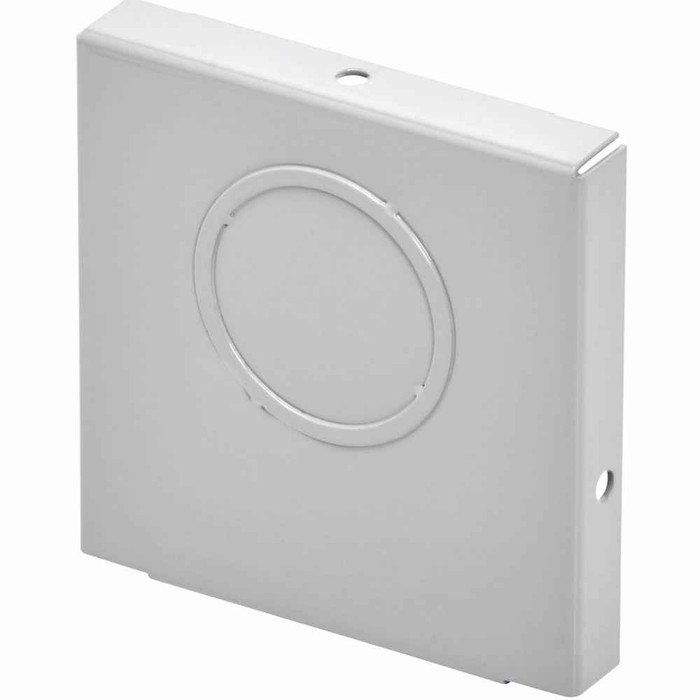

Eaton B-Line series wireway end, Wireway end, NEMA 1, Steel, ANSI 61 gray painted, 3" X 3"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 3 in
- Product Length Depth:
- 3 in
- Product Weight:
- .249 lb
- Product Width:
- 3 in
- Department:
- Electrical
- Product Type:
- Wireway end
- Product Details:
- Wireway end
- Product Material:
- Steel
B-LINE 33 E – Frequently Asked Questions
1) Will the B-Line 33 E wireway end fit a 3x3 wireway run?
Yes. The Eaton B-Line 33 E end plate is built for 3 inch by 3 inch wireway, with 3 in height, 3 in width and 3 in length/depth on the spec. It closes off the open end of a 3x3 trough run. It will not cap a 4x4 or 6x6 wireway, those need an end fitting matched to that cross section.
2) Is this B-Line wireway end rated for outdoor or wet locations?
No. The 33 E end is a NEMA Type 1 enclosure part, which is indoor use only, for general purpose protection against incidental contact and falling dirt. For outdoor, rain, or washdown areas you need a raintight wireway end (Type 3R or Type 4), not this one.
3) What color and material is the 33 E wireway end, and will it match my existing gray trough?
It is steel with an ANSI 61 gray painted finish, the standard gray used across B-Line screw cover wireway, so it matches a typical existing gray 3x3 run rather than standing out at the end of the pull.
4) Do I need one or two wireway ends for a straight run of 3x3 trough?
Order one 33 E per open end you need to close. A straight run that terminates at both ends and feeds nothing takes two; a run that lands into a panel or box at one end takes one. Each 33 E is a single end piece weighing .249 lb.
5) What is the part number to order for a B-Line 3x3 wireway end plate?
The manufacturer part number is 33 E from Eaton's B-Line series. The 33 in the number refers to the 3 inch by 3 inch wireway cross section and the E designates the end fitting.
