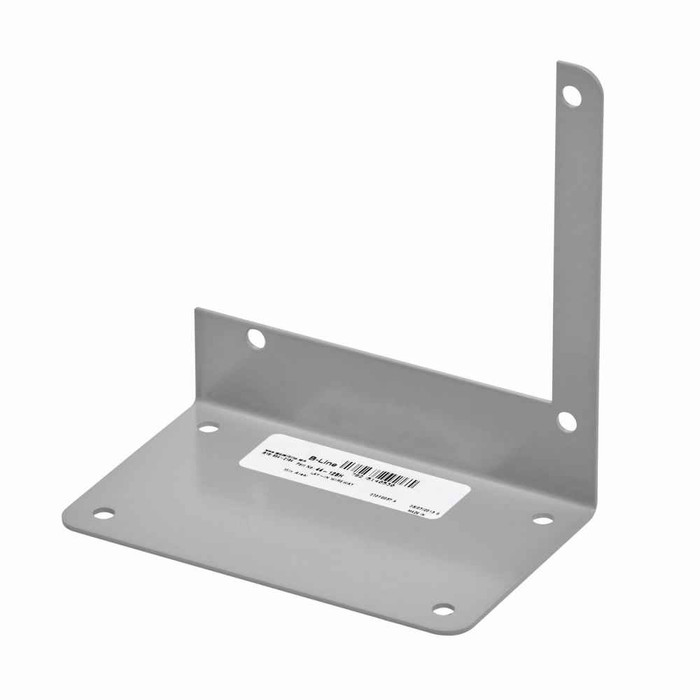

Eaton B-Line series wireway hanger, Wireway hangers (bracket), NEMA 12, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 7.13 in
- Product Length Depth:
- 8.141 in
- Product Weight:
- 1.865 lb
- Product Width:
- 8.13 in
- Special Features:
- NEMA12
- Department:
- Electrical
- Product Group:
- Mounting Hardware
- Product Subgroup:
- Brackets
- Product Type:
- Wireway hangers (bracket)
- Product Details:
- Wireway hangers (bracket)
- Product Material:
- Steel
- Product Length:
- 8.141 in
- Product Length:
- 8.141 in
B-LINE 66-12LBH – Frequently Asked Questions
1) What size wireway does the B-Line 66-12LBH hanger bracket fit?
The 66-12LBH is sized for 6 x 6 inch wireway, which is the size called out in the part description. If your run is 4 x 4, 8 x 8 or 12 x 12, you need the matching hanger for that trough size rather than this one.
2) Is the 66-12LBH hanger suitable for a NEMA 12 wireway installation?
Yes. The 66-12LBH is a NEMA 12 rated wireway hanger bracket, so it pairs with NEMA 12 (dust-tight, drip-tight, indoor) trough systems. It carries a UL Listing.
3) Can I use this B-Line hanger on an outdoor or washdown wireway run?
No. The 66-12LBH is a NEMA 12 bracket with an ANSI 61 painted steel finish, which is an indoor, dust-tight and drip-tight specification. For outdoor (NEMA 3R) or washdown (NEMA 4X) runs, spec a hanger with a galvanized or stainless finish rated for that environment instead.
4) What is the B-Line 66-12LBH made of and what is the finish?
Steel, with an ANSI 61 gray painted finish. That is the standard gray used across Eaton B-Line wireway and enclosure lines, so the bracket blends with a painted NEMA 12 trough run rather than standing out. It is a painted indoor finish, not galvanized or stainless, so keep it out of wet or corrosive locations.
5) How much clearance do I need to allow for the 66-12LBH wireway hanger?
Plan for a bracket footprint of about 8.13 inches wide by 8.141 inches deep by 7.13 inches high. On a 6 x 6 wireway that means the hanger extends past the trough on the mounting side, so check for conflicts with adjacent conduit racks, pipe, or ductwork before you lay out hanger spacing.
6) Does the 66-12LBH wireway hanger come with mounting hardware or threaded rod?
The 66-12LBH is supplied as the hanger bracket itself. Threaded rod, beam clamps, strut, anchors and the fasteners into the structure are ordered separately and sized to your ceiling or wall condition.
7) What exact part number do I order for a 6x6 NEMA 12 B-Line wireway hanger?
Order Eaton B-Line part number 66-12LBH. That single catalog number covers the 6 x 6 inch NEMA 12 hanger bracket in ANSI 61 gray painted steel; there are no finish or size options to specify with it.
8) How heavy is a single B-Line 66-12LBH bracket for takeoff purposes?
Each 66-12LBH hanger weighs 1.865 lb. On a long trough run that adds up quickly for estimating and for figuring dead load on the structure above, so multiply by your hanger count when you size the supporting steel or threaded rod.
