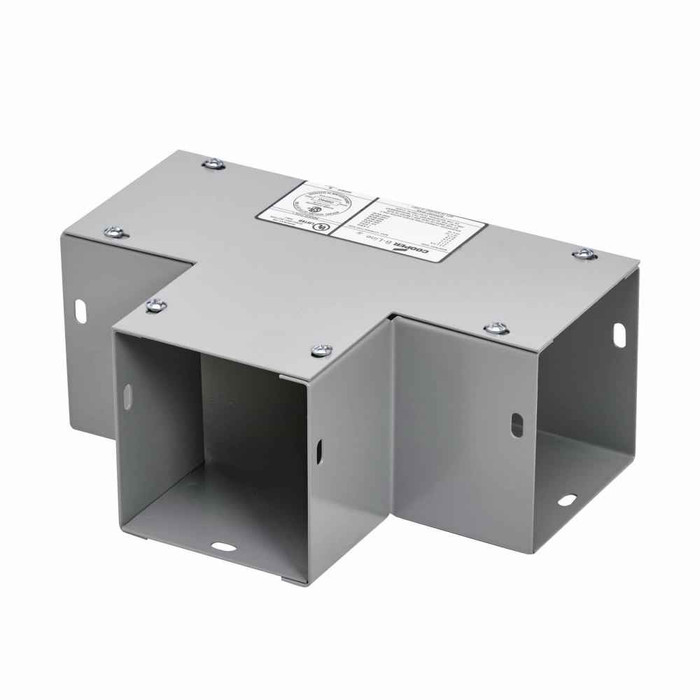

Eaton B-Line series wireway tee fitting, Lay-in, Wireway tee fitting, NEMA 1, Steel, ANSI 61 gray painted, 3" X 3"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 3 in
- Product Length Depth:
- 9 in
- Product Weight:
- 2.438 lb
- Product Width:
- 3 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Tees / Crosses
- Product Type:
- Wireway tee fitting
- Product Details:
- Wireway tee fitting
- Product Material:
- Steel
B-LINE 33 T – Frequently Asked Questions
1) Is this wireway tee rated for outdoor or wet locations?
No. The 33 T is a NEMA 1 enclosure type, which is indoor, dry location use only, for protection against incidental contact and falling dirt. For a rooftop, exterior wall, or washdown area you need a NEMA 3R or 4 rated wireway and matching fittings instead.
2) Can I lay conductors into this tee instead of pulling them through?
Yes, that is the point of it. It is a lay-in fitting, so the cover comes off and conductors drop into the trough and around the branch rather than being pulled through a closed body. That is what makes 3 x 3 wireway faster than conduit for feeder taps and control panel gutters.
3) Is the B-Line 33 T UL Listed?
The 33 T wireway tee is UL Listed. That is usually what an inspector or a spec on an institutional job wants to see on the gutter system and its fittings.
4) What finish and material is this tee, and will it match existing gray wireway?
Steel, with an ANSI 61 gray painted finish. ANSI 61 gray is the standard finish used across industrial enclosures and wireway, so it will visually match existing ANSI 61 gray trough and fittings in the same run.
5) Do I need a tee or a cross for my wireway branch?
Use the 33 T tee where one trough branches into a single perpendicular run, giving three openings. If your gutter has to split in two directions at the same point, that is a four-opening cross, not a tee. Both are 3 x 3 in this size family, so the decision comes down purely to how many legs meet at the junction.
6) How much does the 33 T weigh for overhead mounting?
2.438 lb. Light enough that a single trapeze or strut hanger at the junction carries it along with the adjoining trough sections, but the steel body still wants support at the fitting rather than being hung off the wireway seams alone.
7) What is the manufacturer part number for this B-Line wireway tee?
The part number is 33 T, from the Eaton B-Line series. The 33 designates the 3 x 3 inch cross section and T the tee configuration.
