B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,268.70

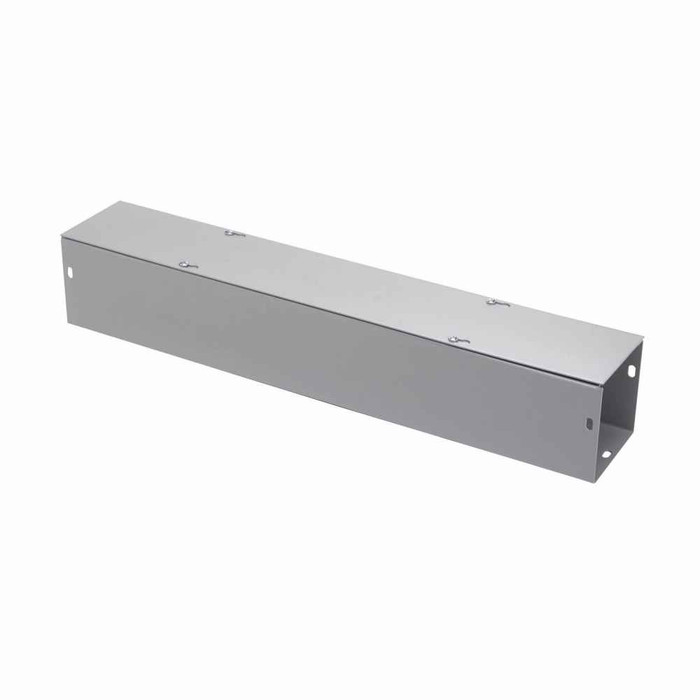

B-Line Eaton series wiring trough, 10" height, 120" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws,

B-Line Eaton series wiring trough, 10" height, 120" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, 1, Steel, Plated screws,

(No reviews yet) Write a Review

Model: 1010120 G NK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,268.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 10" height, 120" length, 10" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
10 in
Product Length Depth:
120 in
Product Weight:
84.088 lb
Product Width:
10 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G NK wireway
Product Details:
G NK wireway

B-LINE 1010120 G NK – Frequently Asked Questions

1) Is the Eaton B-Line 1010120 G NK wireway rated for outdoor or wet locations?
No. The 1010120 G NK trough is a NEMA 1 enclosure, which is indoor, general-purpose only, and offers no protection against rain, dripping water, or washdown. For an outdoor run or a damp area you need a NEMA 3R raintight trough instead. It is CSA Certified.
2) Does this B-Line trough come with knockouts for conduit, or do I have to punch my own?
No knockouts. The 1010120 G NK is the NK (no knockout) version, so every conduit entry gets field-punched where you want it. If you would rather have factory openings on a standard pattern, order a knockout-style trough instead. The blank sides are the reason most electricians pick NK for a custom panel layout.
3) What else do I need to order to complete a wireway run with this trough?
The 1010120 G NK ships as the trough body and its screw-on cover. Connectors or couplings to join sticks together, elbows and tees for direction changes, closure plates for the open ends, conduit hubs or fittings for the entries you punch, and the wall fasteners for the thru holes are all separate. Order them in matching 10 by 10 inch size and NEMA 1 style.
4) How does the cover come off on the 1010120 wireway, and can I get into it after the wire is pulled?
It is a screw cover, secured with plated screws along the flange. You get full access to the whole 10 foot run by backing the screws out, but it is a tool-and-time job compared with a hinged or slip-on cover. On a gutter that gets opened often for troubleshooting, plan for the screw removal or spec a hinged cover version.
5) Will this match wireway I already have installed in the building?
If the existing gutter is 10 by 10 inch NEMA 1 screw-cover in ANSI 61 gray, this piece lines up with it on cross-section and color. Note the identity when you order: the part is Eaton B-Line 1010120 G NK, no knockouts. A knockout-style or a 3R version of the same size will look the same from a distance but is not the same part.
