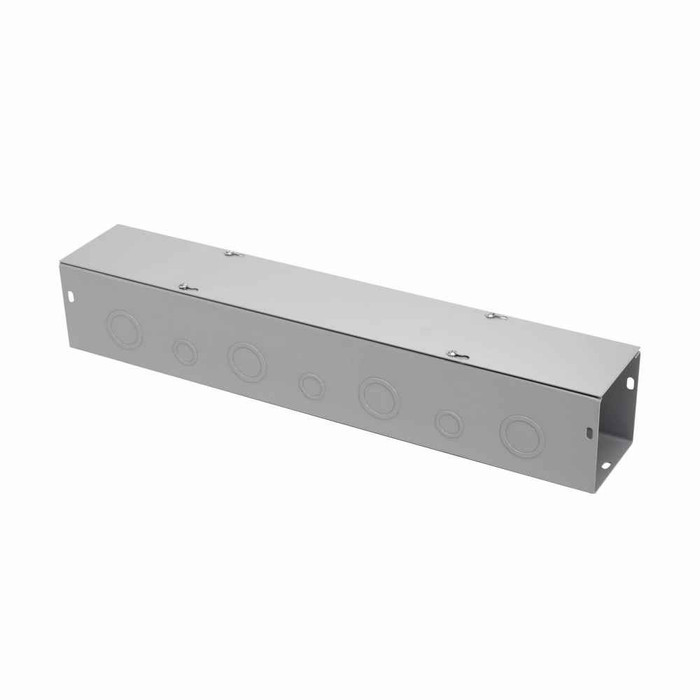

B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$485.13
B-Line Eaton series wiring trough, 12" height, 12" length, 12" width, G wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, 1, Ste

B-Line Eaton series wiring trough, 12" height, 12" length, 12" width, G wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, 1, Ste

(No reviews yet) Write a Review

Model: 121212 G
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$485.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 12" height, 12" length, 12" width, G wireway, Thru holes, 3 top knockouts, 3 bottom knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Closure Type:
Plated screws
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
12 in
Product Length Depth:
12 in
Product Weight:
10.003 lb
Product Width:
12 in
Special Features:
Cover is secured with plated screws
Department:
Electrical
Product Type:
G wireway
Product Details:
G wireway
Product Length:
12 in

B-LINE 121212 G – Frequently Asked Questions

1) Is the Eaton B-Line 121212 G wireway rated for wet or outdoor locations?
No. The 121212 G trough is a NEMA 1 enclosure, which is indoor, general purpose only. It keeps fingers and falling dirt out of the wiring but it is not sealed against water or dust, so keep it out of washdown areas, exterior walls, and damp mechanical rooms. For an outdoor run you need a NEMA 3R rated trough instead.
2) What knockouts come in this 12x12x12 wireway and can I add my own openings?
The 121212 G ships with 3 knockouts in the top and 3 in the bottom, so it is set up for straight vertical conduit runs through the box. The sides and back come blank, which means any horizontal entry has to be field punched. Plan your conduit layout against those six factory openings before you hang it.
3) Is the cover on this B-Line trough hinged or screw-on?
Screw cover. The lid is secured with plated screws all the way around rather than hinged or latched. That is fine for a pull box or a junction point you rarely open, but if you are terminating and re-terminating regularly, expect to handle loose screws and a free cover every time. Where frequent access matters, spec a hinged cover trough instead.
4) Can I use this 12 inch trough as a pull box or splice point rather than a full raceway run?
Yes, and that is a common use. A 12 by 12 by 12 inch G wireway with top and bottom knockouts works well as a gutter or pull point above a panel, giving you room to make splices and turns that will not fit in the panel wiring gutter. Because the cover is screw-on rather than hinged, it suits a location you set up once and rarely reopen.
5) What gauge steel is the B-Line 121212 G trough, and what is the finish?
Body is 14 gauge steel finished in ANSI 61 gray, the standard gray used across most electrical gear, so it matches adjacent panels and enclosures on a typical industrial or commercial install. The 14 gauge wall is heavy enough for a surface-mounted run without oil-canning when you tighten conduit locknuts.
6) What is the exact part number to order this Eaton B-Line wiring trough?
Order it as Eaton B-Line 121212 G. The number reads directly off the size: 12 inch by 12 inch by 12 inch, G series wireway, NEMA 1, screw cover.
