B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,684.95
Image coming soon

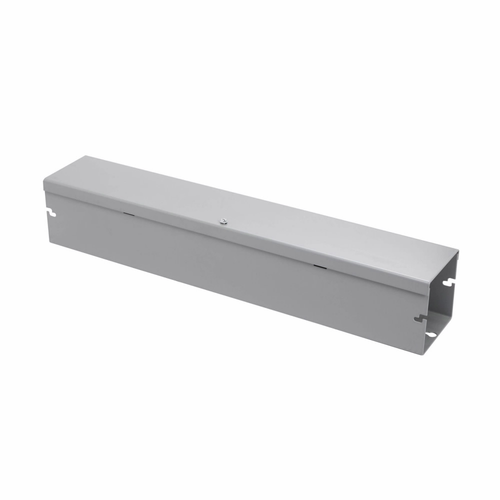

B-Line Eaton series wiring trough, 8" height, 120" length, 8" width, HSNK wireway, Thru holes, No knockouts, Hinged cover, 1, Steel, Hinged, ANSI 61

(No reviews yet) Write a Review

Model: 88120 HSNK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,684.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 8" height, 120" length, 8" width, HSNK wireway, Thru holes, No knockouts, Hinged cover, NEMA 1, Steel, Hinged, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Thru holes
Product Height:
8 in
Product Length Depth:
120 in
Product Weight:
70.859 lb
Product Width:
8 in
Special Features:
Cover is secured to the body with plated screws
Department:
Electrical
Product Type:
HSNK wireway
Product Details:
HSNK wireway

B-LINE 88120 HSNK – Frequently Asked Questions

1) Is the 88120 HSNK trough rated for outdoor or wet locations?
No. It is a NEMA 1 enclosure, which is indoor, dry location only, and it has a hinged cover rather than a gasketed one. For a wet or washdown area you need a NEMA 3R or 4 rated wireway instead.
2) Does this Eaton B-Line wireway come with knockouts for conduit?
No knockouts. The 88120 HSNK ships as a blank body, so every conduit entry is field drilled or punched where you want it. That's a plus on a custom feeder layout and extra labor if you were hoping for pre-punched ends.
3) Is the hinged cover on this trough removable or does it stay attached while you pull wire?
The cover is hinged, so it swings open along the run and stays with the trough while you lay in conductors. It's secured to the body with plated screws, which means you back those out to open it and re-drive them to close up.
4) How does the 88120 HSNK wireway mount to a wall or strut?
It mounts with thru holes in the body, so you fasten it through the trough into your wall, strut, or channel with your own hardware. Mounting bolts, washers, and any strut or brackets are separate items.
5) Is the Eaton B-Line HSNK wireway certified for Canadian jobs?
It carries CSA C22.2 certification, which is what an inspector on a Canadian installation will look for on the label.
6) Do I need connectors or end plates to join two of these wireway sections?
Yes. The 88120 HSNK is the trough body and hinged cover only. Couplings to join sections end to end, closing plates for the ends, and any elbows or tees are ordered separately as matching 8 x 8 fittings.
7) What color and finish is the B-Line 88120 HSNK trough, and will it match existing panelboards?
ANSI 61 gray, the standard gray used on most commercial panelboards, gutters, and enclosures, so a run tied into existing switchgear will match.
How fast can I get the B-LINE 88120 HSNK delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE 88120 HSNK come with a warranty?
Absolutely. The B-LINE 88120 HSNK is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE 88120 HSNK?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
