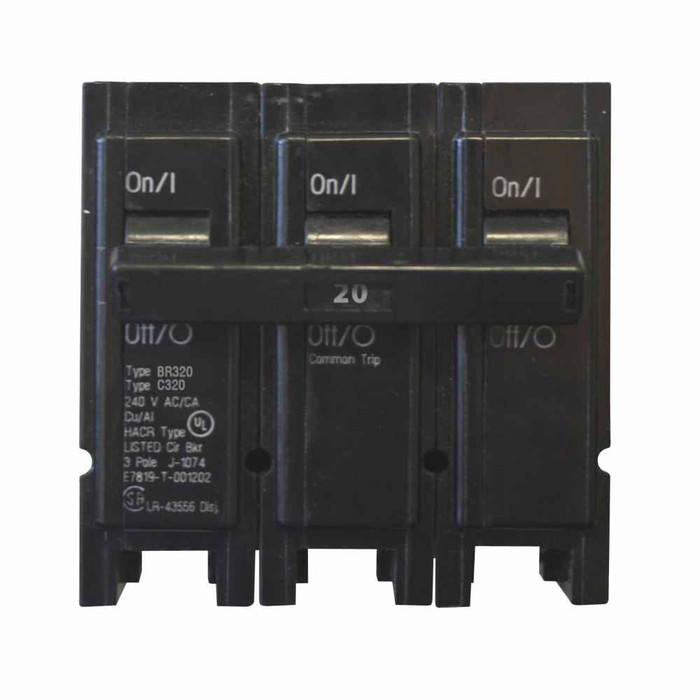

Eaton BR Series 3-Pole Plug-On Circuit Breaker 120/240V 10 kAIC Common Trip

Eaton BR Series 3-Pole Plug-On Circuit Breaker 120/240V 10 kAIC Common Trip

Professional thermal-magnetic protection for Type BR loadcenters

The Eaton BR Series 3-pole plug-on circuit breaker delivers reliable thermal-magnetic protection at 120/240V with 10 kAIC interrupt rating. Designed specifically for Type BR loadcenters, this common trip breaker provides coordinated three-pole protection with convenient plug-on mounting for professional electrical installations.

Professional Features & Benefits

• 10 kAIC Interrupt Rating: Provides robust fault current interruption capability for enhanced system protection and safety.
• Three-Pole Common Trip: Ensures coordinated protection across all three phases with simultaneous tripping for balanced load management.
• Plug-On Mounting: Enables quick and secure installation without additional hardware or complex wiring connections.
• 120/240V Operation: Compatible with standard residential and light commercial voltage systems for versatile applications.
• UL 489 Listed: Meets rigorous safety and performance standards for professional electrical installations.
• BR Series Compatibility: Engineered specifically for Type BR loadcenters ensuring proper fit and optimal performance.
• Thermal-Magnetic Technology: Combines thermal overload and magnetic short-circuit protection for comprehensive circuit safeguarding.

Technical Specifications

• Certifications: UL 489
• Circuit Breaker Type: BR
• Compliances: Federal Specifications Classification W-C375
• Interrupt Rating: 10 kAIC
• Item Quantity: 28
• Main Circuit Breaker: BR
• Mounting Method: Plug-on
• Number Of Poles: Three-pole
• Special Features: Used with Type BR Loadcenters
• Trip Type: Common breaker trip
• Used With: Type BR Loadcenters

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels and distribution systems
• Light commercial facilities requiring three-phase protection
• Multi-unit residential properties
• Professional offices with balanced load requirements
• Retail establishments with three-phase equipment
• Service and maintenance applications

Why Choose Eaton Quality?

Eaton BR Series circuit breakers provide dependable protection with UL 489 certification and compliance with Federal Specifications Classification W-C375. The thermal-magnetic design and common trip functionality ensure reliable performance in demanding electrical applications, backed by Eaton's commitment to professional-grade electrical protection solutions.
