Eaton BRMIKCSR Plug-On Neutral...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$185.60

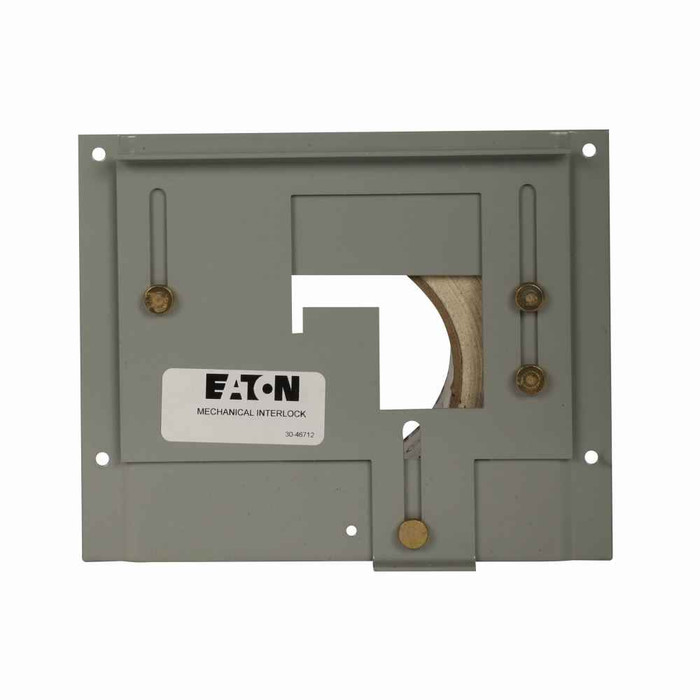

Eaton BRMIKCSR Interlock Kit Plug-On Neutral Mechanical Interlock Kit

Eaton BRMIKCSR Plug-On Neutral Mechanical Interlock Kit 225A

(No reviews yet) Write a Review

Model: BRPMIKCSR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$185.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton BRMIKCSR Plug-On Neutral Mechanical Interlock Kit 225A

Professional Electrical Safety & Code Compliance Solution

The Eaton BRMIKCSR Plug-On Neutral Mechanical Interlock Kit delivers essential electrical safety with a 225A rating for professional installations. This compact 1-inch interlock system ensures reliable mechanical operation while maintaining code compliance in residential and commercial electrical panels.

Professional Features & Benefits

  • 225A Rating: Handles substantial electrical loads with professional-grade capacity for demanding applications
  • Plug-On Neutral Design: Streamlines installation with simplified neutral connections and reduced wiring complexity
  • Mechanical Interlock Operation: Provides reliable safety mechanism preventing simultaneous operation of incompatible circuits
  • Compact 1-inch Profile: Fits efficiently in tight panel spaces while maintaining full functionality
  • Lightweight Construction: At just 1 lb, enables easy handling and installation without structural concerns
  • Professional Certification: Contact manufacturer for specific compliance and listing information

Technical Specifications

  • Amperage Rating: 225 A
  • Certifications: Contact Manufacturer
  • Product Details: Interlock
  • Product Height: 1 in
  • Product Length Depth: 1 in
  • Product Weight: 1 lb
  • Product Width: 1 in

Professional Applications

  • Residential Backup Power Systems
  • Commercial Electrical Panels
  • Generator Transfer Applications
  • Multi-Unit Properties
  • Professional Offices
  • Light Industrial Facilities
  • Emergency Power Systems

Why Choose Eaton Quality?

Eaton delivers proven reliability in electrical safety solutions with professional-grade construction and comprehensive support. This mechanical interlock kit represents trusted Eaton engineering for critical electrical safety applications where code compliance and operational reliability are essential.

Manufacturer Resources

Product Specs

Amperage Rating:
225A
Certifications:
Contact Manufacturer
Product Details:
Interlock
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
1 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Power Distribution
Product Type:
Cable Lug
Product Subgroup:
Panelboards & Load Centers

Eaton BRPMIKCSR – Frequently Asked Questions

1) What does the Eaton BRPMIKCSR interlock kit actually do in a generator setup?
The BRPMIKCSR is a mechanical interlock for an Eaton BR plug-on neutral loadcenter. It physically blocks the main breaker and the generator backfeed breaker from being on at the same time, so utility power and generator power can never be connected to the panel together. That mechanical lockout is what lets a backfed breaker serve as the transfer means instead of a separate automatic transfer switch. It is a kit of hardware only, not a breaker and not a generator inlet.
2) Will the Eaton BRPMIKCSR interlock fit a plug-on neutral BR loadcenter?
Yes, that is the specific panel style it is built for. The kit is sold for Eaton plug-on neutral loadcenters and is rated to 225 A, which covers the common 125 A, 150 A, 200 A and 225 A BR plug-on neutral panels. Interlocks are panel-specific hardware, so confirm the loadcenter in front of you is a plug-on neutral BR type and not an older BR bolt-on-neutral or a CH panel before ordering.
3) Can I use this interlock kit on a 200 amp main breaker panel?
Yes. The 225 A rating on the BRPMIKCSR is the maximum main it is built to work with, so a 200 A plug-on neutral BR loadcenter is within range. Anything above 225 A main needs a different interlock.
4) Does the Eaton interlock kit come with the generator breaker and inlet?
No. The BRPMIKCSR is the interlock hardware only, shipped as a single kit. You still have to supply the two-pole backfed generator breaker sized to your generator, the power inlet box, and the feeder between them. Budget those as separate line items on the job.
5) Where does the generator breaker have to go when using a mechanical interlock?
At the top of the bus, in the two spaces directly below the main breaker on the same side the slide plate travels. The interlock plate moves between the main and that specific breaker position, so no other slot in the loadcenter will work. Plan the panel schedule around that before you start moving circuits.
6) Is an interlock kit or a transfer switch the better choice for a backup generator?
An interlock like the BRPMIKCSR is the low-cost route when the existing loadcenter is an Eaton plug-on neutral panel and you want access to every circuit in it, since the whole panel runs off the generator and you manage load by switching breakers off manually. A transfer switch is the choice when you want only selected circuits carried, or want the changeover automatic with no one on site. The interlock is manual by definition, so somebody has to be at the panel when the power drops.
7) Can I use a generic universal interlock plate instead of the Eaton BRPMIKCSR?
Not advisable. Interlocks are listed as part of the panel assembly, and an inspector on a permitted generator install will generally look for the manufacturer's kit for that loadcenter. The BRPMIKCSR is Eaton's own kit for plug-on neutral BR panels rated to 225 A, which is what keeps the panel listing intact. Aftermarket plates are a common cause of a failed rough inspection.
8) How much panel space does the Eaton BRPMIKCSR interlock take up?
The kit is listed at 1 inch in height, width, and depth, and weighs 1 lb. It mounts on the deadfront over the main breaker area rather than consuming breaker poles, so the space that matters on the job is the two pole positions you give up to the backfed generator breaker.
9) Is one BRPMIKCSR kit enough for a multi-unit building with several panels?
One kit covers one loadcenter. It ships as a single unit, so a property with separate metered panels per unit needs one kit per panel you intend to make generator-ready, plus a backfed breaker and inlet for each.
