Bussmann KTS-R-40 Eaton series...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$379.19
$255.37

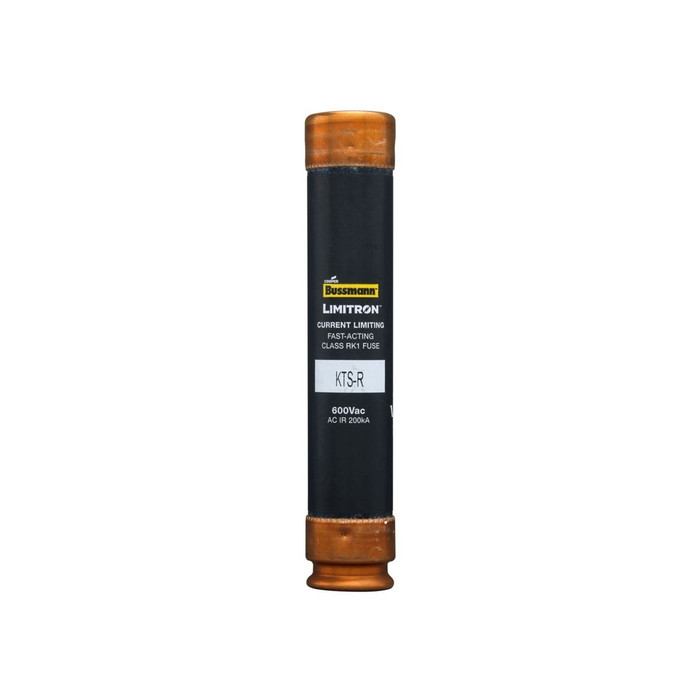

Bussmann KTS-R-40 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 40 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V

Bussmann KTS-R-40 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 40 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V

(No reviews yet) Write a Review

Model: KTS-R-40

In Stock (leaves warehouse same day if ordered before 3pm ET)

$379.19
$255.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann KTS-R-40 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 40 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V.

  • Amp rating: 40 A
  • Voltage rating: 600 V
  • Class: Class RK1
  • Interrupt rating: 200 kAIC at 600 Vac
  • Product type: Fuse
  • Dimensions (L x W x H): 1.5 x 1.5 x 5.5 in

Genuine Bussmann part number KTS-R-40.

Manufacturer Resources

Product Specs

Amperage Rating:
40A
Class:
Class RK1
Compliances:
CE Marked
Connection:
Ferrule end x ferrule end
Fuse Indicator:
Non-indicating
Interrupt Rating:
200 kAIC at 600 Vac
Number Of Elements:
1
Packaging Type:
Standard
Product Height:
5.5 in
Product Length Depth:
1.5 in
Product Weight:
.33 lb
Product Width:
1.5 in
Special Features:
70/30 brass end cap
Voltage Rating:
600V
Department:
Electrical
Product Material:
Melamine glass tube
Product Type:
Fast-Acting Fuse
Product Group:
Circuit Protection
Product Subgroup:
Fuses
Product Length:
1.5 in

Bussmann KTS-R-40 – Frequently Asked Questions

1) Can I use a KTS-R-40 to replace a time-delay fuse like an LPS-RK or FRS-R in a motor circuit?
No, not on a motor load. The KTS-R-40 is a LIMITRON fast-acting, single-element fuse, so it has no intentional time delay and will open on normal motor inrush. Fast-acting R-class fuses belong on non-motor loads such as panelboard feeders, lighting, and resistive circuits. For a motor or transformer, use a dual-element time-delay Class RK1 fuse of the same 40 amp, 600 volt rating.
2) Can I tell by looking whether a KTS-R-40 fuse has blown?
No. The KTS-R-40 is non-indicating, with a melamine glass tube body and no blown-fuse pop-up or window. You have to pull it and check continuity with a meter, or test voltage across the holder. If your maintenance crew wants visual verification without a meter, specify an indicating-style fuse instead.
3) Can I mix a KTS-R-40 with other amp ratings in the same fuse family across my building?
Yes, the KTS-R series runs as a family, so standardizing a facility on KTS-R lets you stock one fast-acting Class RK1 line and change only the amp rating per circuit. The KTS-R-40 is the 40 amp, 600 volt member. Keep all three poles of a given disconnect on the same amp rating and the same series so clearing characteristics match.
