Bussmann KTS-R-175 Eaton serie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,383.53
$1,034.50

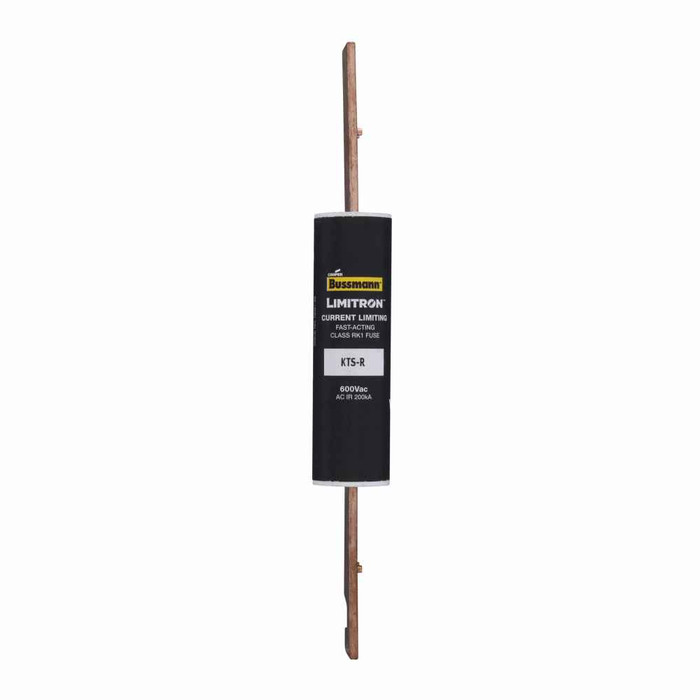

Bussmann KTS-R-175 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 175 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V

Bussmann KTS-R-175 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 175 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V

(No reviews yet) Write a Review

Model: KTS-R-175
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,383.53
$1,034.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann KTS-R-175 Eaton series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 175 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V.

  • Amp rating: 175 A
  • Voltage rating: 600 V
  • Class: Class RK1
  • Interrupt rating: 200 kAIC at 600 Vac
  • Product type: Fuse
  • Dimensions (L x W x H): 9.63 x 1.5 x 1.5 in

Genuine Bussmann part number KTS-R-175.

Manufacturer Resources

Product Specs

Amperage Rating:
175A
Class:
Class RK1
Compliances:
CE Marked
Connection:
Blade end x blade end
Fuse Indicator:
Non-indicating
Interrupt Rating:
200 kAIC at 600 Vac
Number Of Elements:
1
Packaging Type:
Standard
Product Height:
1.5 in
Product Length Depth:
9.63 in
Product Weight:
1.23 lb
Product Width:
1.5 in
Special Features:
70/30 brass end cap
Voltage Rating:
600V
Department:
Electrical
Product Material:
Melamine glass tube
Product Type:
Fast-Acting Fuse
Product Group:
Circuit Protection
Product Subgroup:
Fuses
Product Length:
9.63 in

Bussmann KTS-R-175 – Frequently Asked Questions

1) Can I use a Class RK1 fuse like the KTS-R-175 in a panel that currently has RK5 fuses?
Yes. Class RK1 and RK5 share the same Class R dimensions and rejection feature, so a KTS-R-175 will physically fit any 175 A, 600 V Class R holder that currently holds an RK5. The difference is let-through: RK1 clears with lower peak current and energy than RK5, which generally improves downstream component protection. Going the other direction, RK5 into equipment specified for RK1, is not an equivalent substitution.
2) Is the KTS-R-175 a fast-acting fuse or a time-delay fuse for motor loads?
It is fast-acting, part of the Bussmann LIMITRON KTS-R line, with a single element. Fast-acting means no intentional time delay, so it will not ride through motor inrush the way a dual-element time-delay Class RK1 will. Use it on non-motor loads such as panelboard mains and feeders, switchboards, and circuits feeding electronic or resistive loads. For across-the-line motor starting, specify a time-delay Class RK1 instead.
3) Can I tell by looking whether a KTS-R-175 has blown?
No. The KTS-R-175 is non-indicating, so there is no pop-out pin or window to show an opened element. Check it with a meter across the blades, or specify an indicating fuse or a separate blown-fuse indicator if crews need a visual check on a panelboard.
4) Can I use a 600 volt fuse like the KTS-R-175 on a 480 volt or 240 volt circuit?
Yes. A fuse voltage rating is a maximum, so the 600 V KTS-R-175 can be applied on any ac system at or below 600 V, including 480Y/277 and 208/240. You cannot go the other way and put a 250 V fuse in a 600 V circuit. Make sure the holder itself is rated 600 V.
5) How do I order the exact Bussmann 175 amp LIMITRON fuse for a panelboard replacement?
Order by the Bussmann part number KTS-R-175, which is the 175 A, 600 V Class RK1 fast-acting LIMITRON in standard packaging. Fuses are sold individually, so for a three-phase panelboard main you will need three. The part is CE marked.
6) What is the KTS-R-175 body made of and how much does it weigh?
The tube is melamine glass with 70/30 brass end caps, weighing 1.23 lb. The melamine glass body handles the thermal and mechanical stress of a 200 kA interruption without rupturing, and the brass caps carry 175 A continuously in bolted or clip connections.
