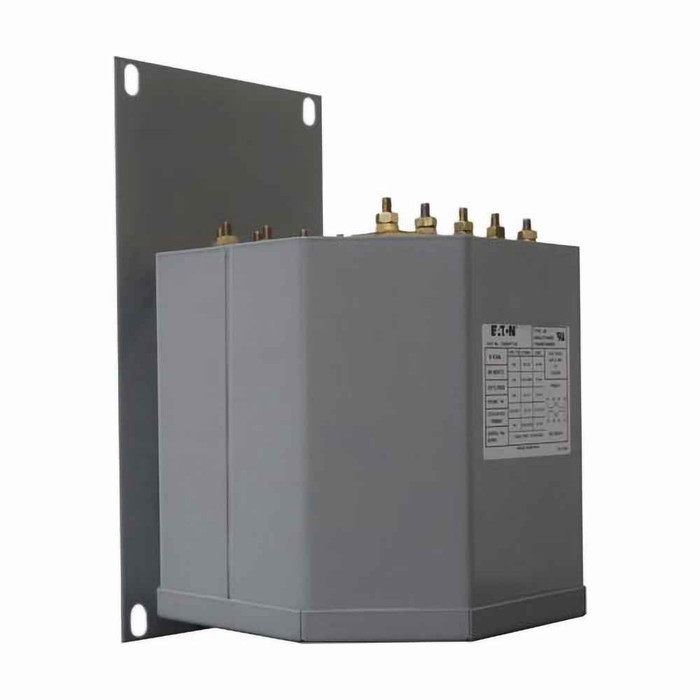

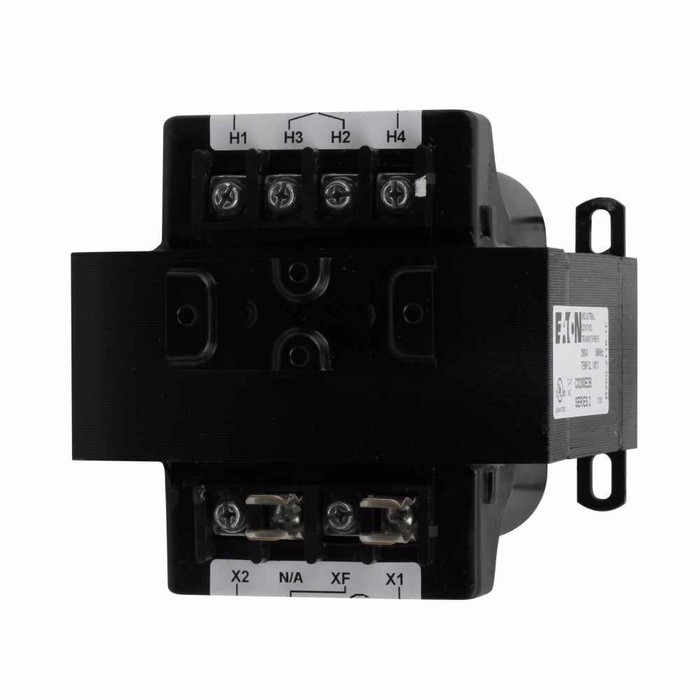

Eaton C0250E2A type MTE, industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 250 va

Eaton MTE Industrial Control Transformer 250 VA 240x480V Primary 120/115/110V Secondary

(No reviews yet) Write a Review

Model: C0250E2A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$256.90
$244.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton MTE Industrial Control Transformer 250 VA 240x480V Primary 120/115/110V Secondary

Professional Industrial Control Power Conversion Solution

The Eaton MTE Industrial Control Transformer delivers reliable 250 VA power conversion with multiple primary voltage options of 240x480V and secondary outputs of 120/115/110V. This UL Listed transformer features epoxy encapsulation and high-quality silicon steel laminations for optimized performance in industrial control applications, with copper windings and 55°C temperature rating for dependable operation.

Professional Features & Benefits

  • 250 VA Rating: Provides substantial power capacity for demanding industrial control circuits and equipment.
  • Multiple Primary Voltages (240x480V): Offers installation flexibility across various electrical systems and voltage configurations.
  • Triple Secondary Outputs (120/115/110V): Accommodates different control voltage requirements in a single transformer unit.
  • Epoxy Encapsulation: Protects internal components from moisture, dust, and environmental contaminants for extended service life.
  • High-Quality Silicon Steel Laminations: Minimizes core losses and optimizes efficiency for reduced operating costs.
  • Copper Windings: Ensures excellent conductivity and thermal performance for reliable long-term operation.
  • UL Listed Certification: Meets rigorous safety standards for professional installation and code compliance.

Technical Specifications

  • Catalog Notes: Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize
  • Certifications: UL Listed
  • Coil Material: Copper windings
  • Compliances: RoHS Compliant
  • Primary Voltage: 240 x 480 V
  • Product Design: MTE
  • Product Details: Industrial Control Transformer
  • Product Height: 4.22 in
  • Product Length Depth: 4.18 in
  • Product Weight: 9.3 lb
  • Product Width: 4.5 in
  • Secondary Voltage: 120/115/110 V
  • Tap Size: None
  • Temperature Rating: 55°C
  • Volt Ampere Rating: 250 VA

Professional Applications

  • Industrial Control Panels and Automation Systems
  • Manufacturing Equipment Power Conversion
  • Motor Control Centers and Drive Applications
  • Process Control and Instrumentation
  • Machine Tool and Production Line Equipment
  • Commercial HVAC Control Systems
  • Electrical Distribution and Power Management

Why Choose Eaton Quality?

Eaton industrial control transformers combine proven MTE design with UL Listed safety certification and RoHS compliance. The epoxy encapsulation and high-quality silicon steel construction ensure reliable performance in demanding industrial environments, while the compact 4.22" x 4.18" x 4.5" footprint and 9.3 lb weight facilitate efficient installation and service access.

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Coil Material:
Copper windings
Compliances:
RoHS Compliant
Primary Voltage:
240 x 480 V
Product Design:
MTE
Product Details:
Industrial Control Transformer
Product Height:
4.22 in
Product Length Depth:
4.18 in
Product Weight:
9.3 lb
Product Width:
4.5 in
Secondary Voltage:
120/115/110 V
Temperature Rating:
55°C
Volt Ampere Rating:
250 VA
Department:
Electrical
Product Group:
Transformers
Product Type:
Transformer

Eaton C0250E2A – Frequently Asked Questions

1) Can the Eaton C0250E2A control transformer be wired for both 240V and 480V primary?
Yes. The C0250E2A is a dual-voltage primary unit rated 240 x 480 V, so the two primary coils land in parallel for 240V service or in series for 480V. Secondary is 120/115/110 V, so you get standard 120V control power off either primary connection. There are no primary taps on this unit, so the only primary adjustment you have is the series/parallel connection.
2) Does the Eaton C0250E2A come with primary and secondary fuse blocks?
No. The C0250E2A is the transformer only, an industrial control transformer of the MTE design with no taps. Primary and secondary overcurrent protection, fuse blocks, fuse clips and any finger-safe covers are ordered separately and sized to your primary voltage connection and the 250 VA rating.
3) Can I use this transformer on a 208V or 600V system?
No. The C0250E2A is built for a 240 x 480 V primary, connected either for 240V or for 480V. It is not a 208V or 600V unit. If your feed is 208V single phase or 600V, you need a control transformer whose primary is rated for that voltage; running this one outside its 240/480 primary rating will give you the wrong secondary voltage and can damage the windings.
4) What are the 115V and 110V secondary connections for on this Eaton MTE transformer?
The secondary is rated 120/115/110 V, which gives you lower output options for older control gear or for long secondary runs where voltage drop would otherwise push a 120V coil out of range. Most new panel work uses the 120V connection; the 115 and 110 legs exist so you can match legacy equipment nameplates without adding a second transformer.
5) Will the Eaton C0250E2A fit inside a small control enclosure?
The unit measures 4.22 x 4.18 x 4.5 inches and weighs 9.3 lb. Lay out your backpan for that footprint plus wire bending space at the primary and secondary terminals, and remember the epoxy encapsulated body needs room around it to shed heat. The 9.3 lb weight is enough that it should land on the subpanel, not hang off DIN rail accessories rated for lighter loads.
6) What does the 55 degree C temperature rating mean for derating this transformer?
55 degrees C is the winding temperature rise rating on the C0250E2A. The full 250 VA is available when ambient stays within what that rise allows; a hot panel interior, poor ventilation, or stacking it against other heat-producing gear eats into usable capacity. If the enclosure runs warm, oversize the VA rather than running this one at its limit.
7) Is the Eaton MTE 250 VA transformer UL Listed and RoHS compliant for a spec job?
Both. The C0250E2A carries a UL Listed certification and is RoHS compliant, which is what most industrial control panel specs and inspectors are looking for on the control power component. Order it by the Eaton part number C0250E2A.
8) Is this Eaton control transformer suitable for a dusty or damp industrial environment?
It is epoxy encapsulated, which seals the windings against moisture, dust and airborne contaminants, and the coils are copper. That construction is the reason this style gets specified in machine tool panels and process areas rather than an open, varnish-dipped unit. It is still a panel-mounted component, so it belongs inside a suitably rated enclosure for the location.
