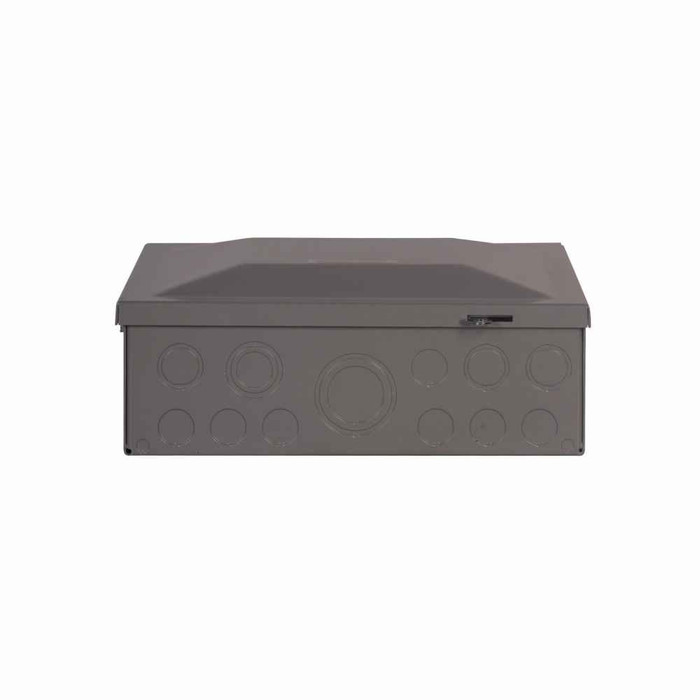

Eaton CH main lug loadcenter,Cover included,Main lug only,125 A,7r,Copper,NEMA 3R,Metallic,Overhead,CH,#14-1/1 AWG,6 Circuits,6 Spaces,Four-wire,Three-phase,120/240V, 208Y/120, 240V
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125 A
- Box Size:
- 7R
- Bus Material:
- Copper
- Catalog Notes:
- Suitable for use as service equipment when not more than two service disconnecting means are provided or when not more than six service disconnecting means are provided and when not used as a lighting and appliance panelboard
- Certifications:
- UL 50
- Enclosure:
- NEMA 3R
- Enclosure Material:
- Metallic
- Feed Type:
- Overhead
- Interrupt Rating:
- 35 kAIC
- Main Circuit Breaker:
- CH
- Main Lug Wire Size:
- #14-1/1 AWG
- Number Of Circuits:
- 6
- Number Of Spaces:
- 6
- Number Of Wires:
- 4
- Phase:
- Three-phase
- Product Height:
- 3.56 in
- Product Length Depth:
- 13 in
- Product Weight:
- 9.9 lb
- Product Width:
- 11 in
- Special Features:
- Cover included
- Type:
- Main lug only
- Voltage Rating:
- 120/240V, 208Y/120, 240V
- Product Group:
- Electrical
