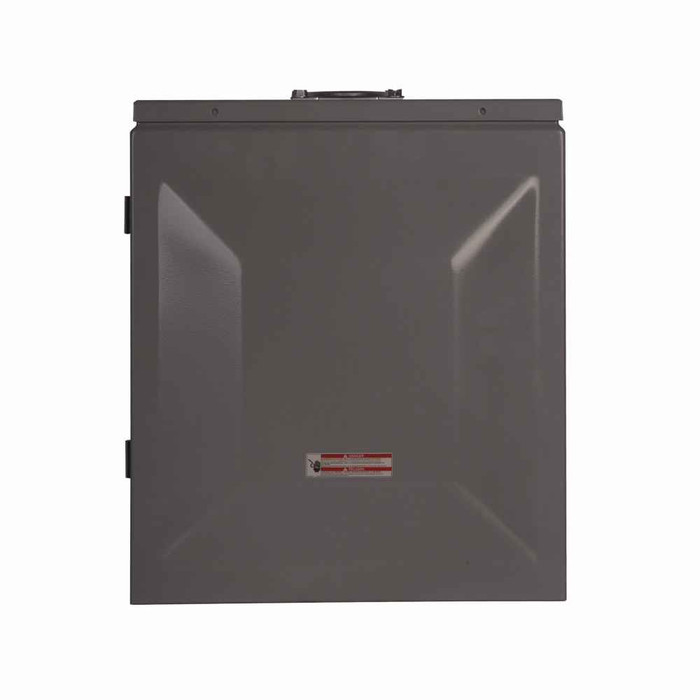

Eaton CH main lug loadcenter,Main lug only,125 A,7,Copper,Cover not included,NEMA 1,Metallic,Top/bottom,CH,#14-1/0 AWG,Flush,6 Circuits,6 Spaces,Four-wire,Three-phase,120/240V, 208Y/120, 240V
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125 A
- Box Size:
- 7
- Bus Material:
- Copper
- Catalog Notes:
- Suitable for use as service equipment when not more than two service disconnecting means are provided or when not more than six service disconnecting means are provided and when not used as a lighting and appliance panelboard
- Certifications:
- UL 50
- Cover:
- Cover not included
- Enclosure:
- NEMA 1
- Enclosure Material:
- Metallic
- Feed Type:
- Top/bottom
- Interrupt Rating:
- 35 kAIC
- Main Circuit Breaker:
- CH
- Main Lug Wire Size:
- #14-1/0 AWG
- Mounting:
- Flush
- Number Of Circuits:
- 6
- Number Of Spaces:
- 6
- Number Of Wires:
- 4
- Phase:
- Three-phase
- Product Height:
- 3.56 in
- Product Length Depth:
- 13 in
- Product Weight:
- 9.9 lb
- Product Width:
- 11 in
- Type:
- Main lug only
- Voltage Rating:
- 120/240V, 208Y/120, 240V
- Product Group:
- Electrical
